Chaintech 7VJL KT333 review (1)
Overclocker 21 Jul 2002

The 7VJL - a complete solution

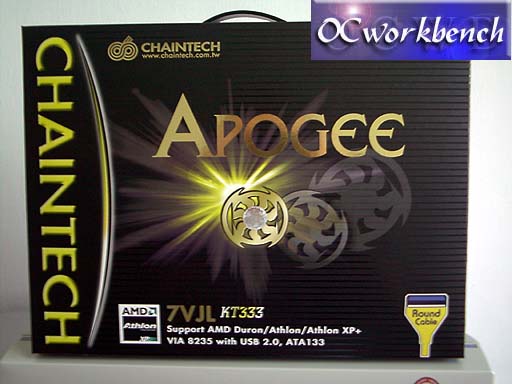

Chaintech abandoned its traditional green packaging with a revamped golden/black packaging. If you have seen our Computex 2002 coverage, you probably already know that APOGEE is a new series that caters to the bulk of users who wants power at a good price. It comes complete with most of the necessary accessories making it a full complete package. Chaintech is also the FIRST company that bundles Round Cable with their package. This is a welcome move as it makes the casing less cluttered with cables. The package also comes with Body Theatre which promises true personal experience of surround sound with XeaR technology through the headphones using the Cmedia 6 ch chipset.

Although Chaintech is late to deliver the KT333 board, they implemented the latest South Bridge VT8235 with USB 2.0 and ATA133. CBOX is also bundled with the package. It is a front panel with 4 USB 2.0 connectors and a MIC and Phone Jack.

Detail Specifications

Hardware	CPU : AMD Socket A System : Frequency FSB 200/266 MHz Chipset : VIA KT333 + VT8235 Memory : (3) DDR SDRAM DIMMs (3GB)
Physical	Form Factor ATX Dimensions 305mm x 230mm
Expansion	One Universal-AGP slot for both 2X/4XAGP (v2.0 compliant) Six 32-Bit PCI slots (v2.2 compliant)
AV Subsystems	Video 4XAGP Audio CMedia 8738 6ch / Optional AC'97 Codec
CPU	Supports AMD Socket A Duron/Athlon/XP CPU System clock supports 200/266 MHz
Chipset	VIA KT333 + VT8235
Main Memory	Three 184 pin DDR DIMMs up to 3GB Supports PC1600/2100/2700 DDR SDRAM modules
Expansion Slots	One Universal-AGP slot for both 2X/4XAGP (v2.0 compliant) Six 32-Bit PCI slots (v2.2 compliant)
Audio Subsystem	Full-duplex operation for simultaneous recording and playback 6 Channel speaker audio supports Embedded 32OHM 5w earphone amplifier Supports MIDI and dual game ports 32 Voice HRTF 3D positional audio, CRL 3D supports MS Direct Sound3D, Aureal A3D and Creative EAX APIs Support SPDIF (optional)
Video Subsystem	Video : AGP 4X
UltraDMA IDE Ports	Supports two IDE ports up to 4 ATAPI devices Supports PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 66MBps, Multi Word Mode 5 up to 100MBps and Multi Word Mode 6 up to 133MBps with Bus Mastering Bus-Mastering software drivers for all common multi-tasking operating systems
Embedded USB Controller	Embedded USB1.1/2.0 Controller Three EHCI USB 2.0 Controller support total 6 USB 2.0/1.1 Ports Support USB 2.0 High-Speed Device @480 Mb/s Transfer Rates
On Board Super I/O Controller	Two UARTs support serial ports and IR function (up to 115.2Kbps) for HPSIR and ASKIR One SPP/ECP/EPP parallel port One floppy disk drive connector supports up to 2.88MB Integrates smart card reader function and interface, to be qualified for meeting PC/SC standard
Embedded system monitoring	8 external voltage inputs 2 temperature sensing for CPU and system 2 Fan speed (CPU and system) monitoring with on/off control in suspend
Boot-Block Flash ROM	Award system BIOS support PnP, APM, DMI, ACPI, & Multi-device booting features
Software	Driver CD (Chipset Autodetect) Value Pack 2002 Thiz Linux 6.0 APOGEE™ Overclocking
Other Feature	Three 3x1 pin fan connector Two 5x2 pin USB connectors for front side 4 USB ports 6x1 pin Infrared connector 3x1 pin wake on LAN connector with housing 3x1 pin wake on Modem connector with housing 4x1 pin CD-in connector with 2.54mm pitch housing 4x1 pin Aux-in connector with 2mm pitch housing 4x1 pin Mono-in connector with 2mm pitch housing 5x2 pin SPDIF connector (optional) 4x2 pin woofer/center connector for 6 channel audio 5x2 pin front side audio connector 9x2 pin front panel connector 17x2 pin floppy connector
