Chaintech A-G321 Geforce 3 Ti200 128MB Review (1)
Overclocker 20 March 2002

Do you still remember Chaintech 6BTM and Chaintech 7SID ? Well you should as they are one of the first companies that brought costs down for mainboards. Today, we are not going to look at mainboard but Chaintech's graphic cards A-G321 Geforce 3 Ti200 128MB.

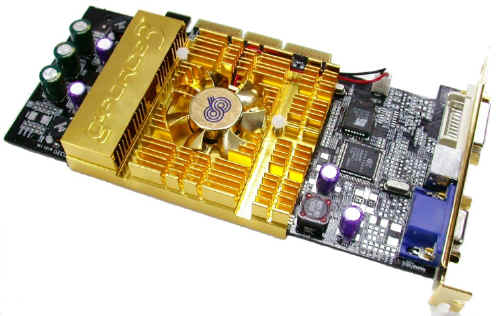

This card looks cool isn't it ? The heatsink is attached to the core and memory on board. The overall package is also very designed. Two games (AquaNox (3D Shooting), MDK2 (First Person Shotting) are packaged together with the card. First let's take a look at the specifications of this card followed by a gallery and benchmarks comparing this card with MSI GF3 Ti200.

Feature highlights
	Interface	AGP interface 4x/2x AGP supports
	Chipset	NVIDIA® GeForce3™ Ti200
	Memory	128 MB DDR SDRAM
	General features	- 128-bit memory interface - 256-bit graphics architecture - 175 MHz core clock - 400 MHz memory clock - 350 MHz RAMDAC - 57 million transistors - 700 billion operations per second - 3.2 billion samples per second HRAA fill rate - 76 GFLOPS - 6.4 GB/sec memory bandwidth - Breakthrough nFinite-FX engine - Programmable pixel shader - Fully programmable for Jaw-dropping realism - First to offer high resolution, high frame rate, full-scene anti-aliasing (HRAA) - Xbox architecture - Creates an infinite number of special effects that bring 3D characters and environments to life - Lightspeed memory architecture - Generates the power behind the GeForce3™ GPU, delivering earthshaking performance at all resolutions
	High quality video playback	- DVD and HDTV ready motion compensation for MPEG-2 decoding up to 1920x1080 NTSC format - Supports for VIP 2.0 interface
	Full software support	- Windows® 95 / 98 and Windows® ME display drivers - Windows® 2000 and XP display drivers - OpenGL ICD support for Windows® 95 / 98 / 2000
	Special features	- 15-pin D-sub VGA connector - Video-Out function (S-Video connectors) - DVI-I connector (Optional)
	Supports super high-resolution graphics	Resolution Colors Refresh Rate 640x480 8/16/32 bit 60Hz to 240Hz 800x600 8/16/32 bit 60Hz to 240Hz 1024x768 8/16 bit 60Hz to 240Hz 1024x768 32 bit 60Hz to 200Hz 1152x864 8/16 bit 60Hz to 200Hz 1152x864 32 bit 60Hz to 170Hz 1280x960 8/16 bit 60Hz to 170Hz 1280x960 32 bit 60Hz to 150Hz 1280x1024 8/16 bit 60Hz to 170Hz 1280x1024 32 bit 60Hz to 150Hz 1600x900 8/16 bit 60Hz to 150Hz 1600x900 32 bit 60Hz to 120Hz 1600x1200 8/16 bit 60Hz to 120Hz 1600x1200 32 bit 60Hz to 100Hz 1920x1080 8/16 bit 60Hz to 100Hz 1920x1080 32 bit 60Hz to 85Hz 1920x1200 8/16 bit 60Hz to 100Hz 1920x1200 32 bit 60Hz to 85Hz 1920x1440 8/16 bit 60Hz to 85Hz 1920x1440 32 bit 60Hz to 75Hz 2048x1536 8/16 bit 60Hz to 75Hz 2048x1536 32 bit 60Hz
	Other feature	Game Bundled: . AquaNox (3D Shooting) . MDK2 (First Person Shotting)

Let's take a look at the gallery of the Chaintech A-G321 Geforce 3 Ti200 128MB on the next 2 pages followed by the benchmarks.
