MSI 648 Max SiS 648 Mainboard Gallery (4)
Overclocker 27 Aug 2002

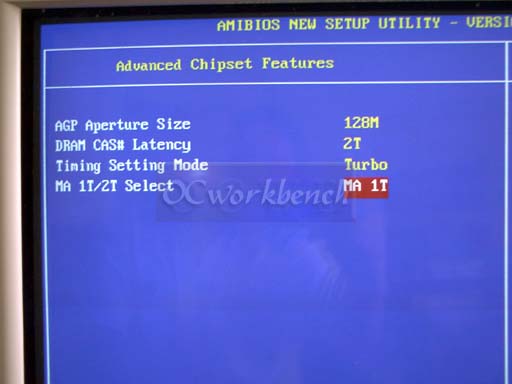

In our test, we set AGP Aperture size to 128M. DRAM CAS to 2.0, Timing setting mode to Turbo (set to Ultra=no boot). MA 1T/2T we set it to 1T cmd. Timing setting mode can be safe, normal, fast, turbo, ultra.

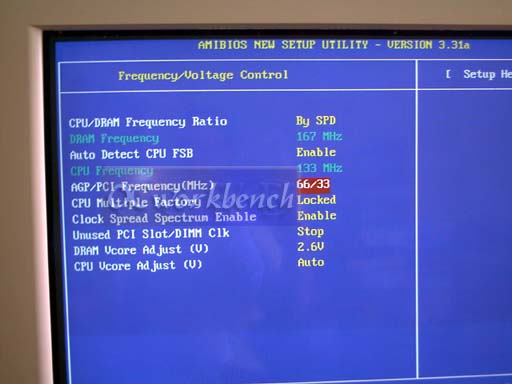

There are lots of cpu/dram frequency ratios you can choose from the list below. The most prominent one is to run 133/166 and 133/200. It could definitely be easier that they show the fsb : mem in actual numbers than in ratio. By SPD will auto detect what sort of module you are using and it will set it to run async DDR333 mode.

Over here, you can fix the AGP/PCI to 66/33 or 68/34 etc. This is something that is not available on the Shuttle and ASUS board we have reviewed before. DRAM Vcore and CPU Vcore are all adjustable.

DRAM : 2.5 ~ 2.8v at 0.1v intervals
CPU VCore adjustable up to 1.85v
