MSI 6568 SiS740 Mainboard Gallery (3)
Overclocker 6 Apr 2002

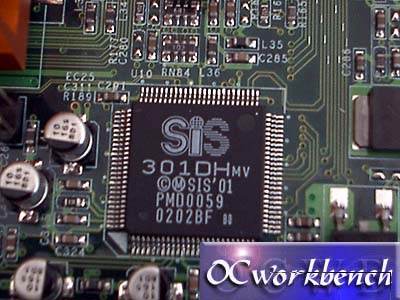

The SiS 301DHMV TV decoder is on board (optional) and supports dual monitor output. This chipset is a NTSC/PAL video encoder with Macrovision ver 7.1.L1 option for TV display. It support S-video out and (TV-out) and composite out.

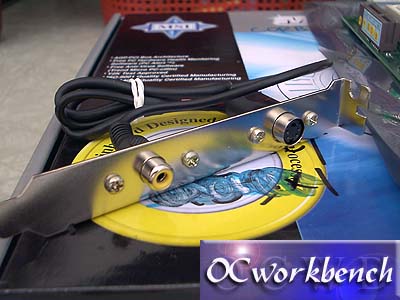

This brackets has two outputs, S-VHS and composite out

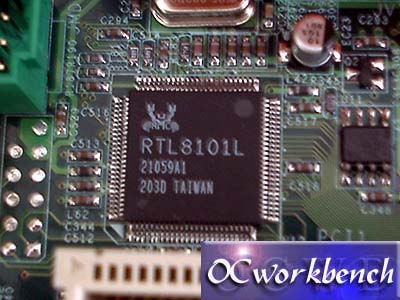

The Realtek 8101L chipset for support the LAN on board.

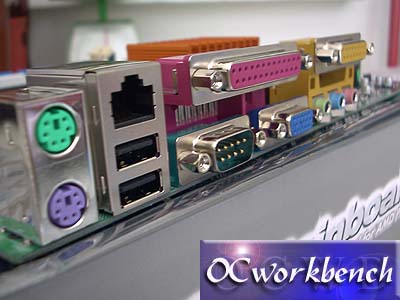

Rear of the mainboard showing all conenctors.
