MSI 845E Max 2 Gallery (2)
Overclocker 21 May 2002

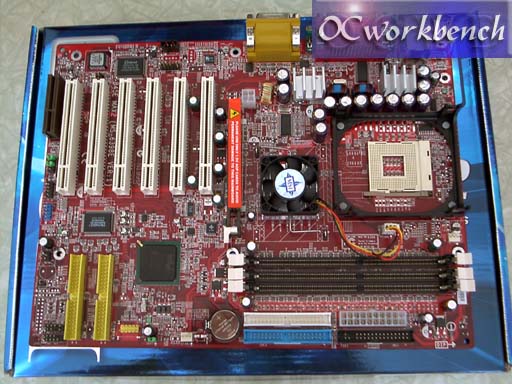

The Maniboard, as usual red in colour. MSI seems to like the idea of big heatsinks on the MOSFETs since the days of 745Ultra. It appears on the 845E Max2 too.

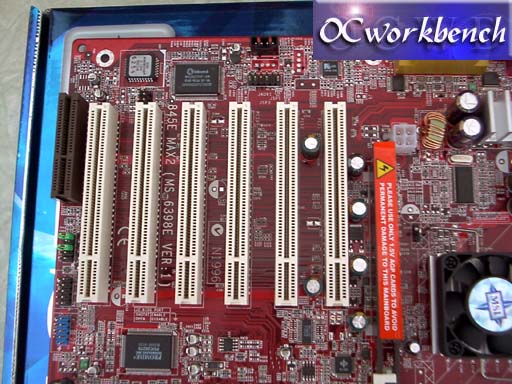

6 PCI, 1 AGP,1 CNR. The conncetor for the bluetooth is right on top of the 5th PCI Slot (from right to left), next to the BIOS.

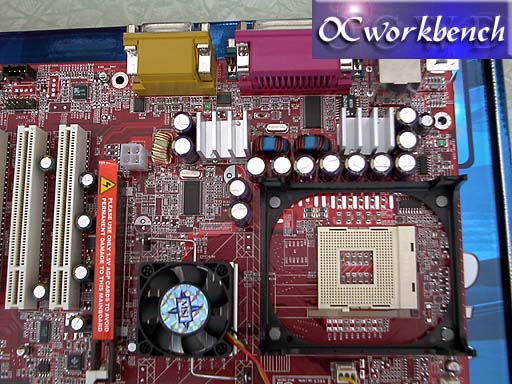

The heatsinks on the MOSFETs seems to be incorporated onto the newer boards since the 745ultra.

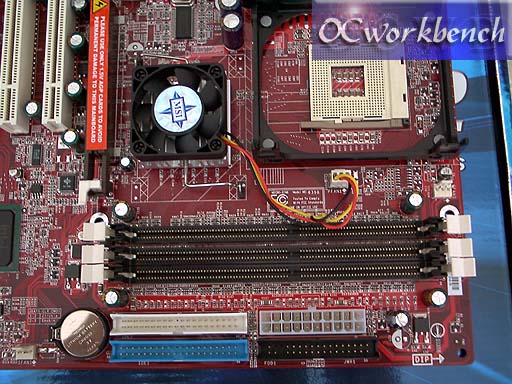

3 DDR Slots. IDE channels, floppy connector and Power connector.

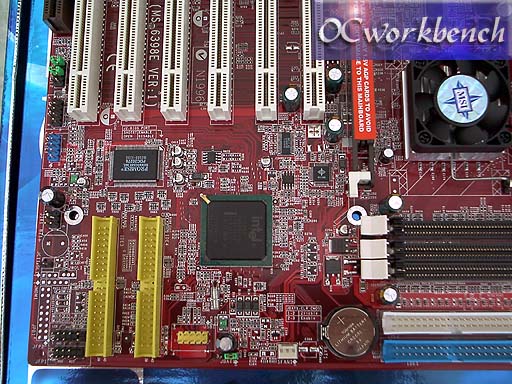

The popular Promise ATA-133 RAID chipset supporting 2 channels of ATA-133 RAID.
