Shuttle AK35GTR Gallery (2)
Overclocker 21 Feb 2002

The Mainboard

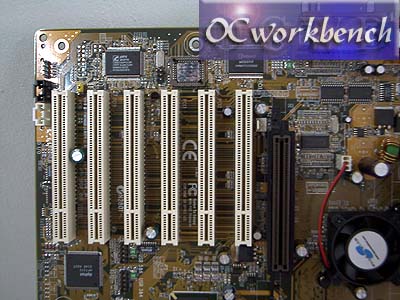

6 PCI slots provides maximum expansion. The AGP Slot is equipped with a AGP retention kit. Do take note that the MSI Geforce 3 Ti200 card has problems inserting it into the slot because of the clip which is blocked by the heatsink on the graphics card.

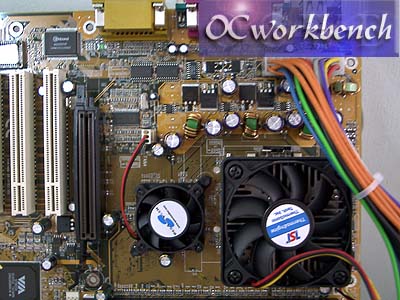

A chipset/fan cooler is mounted on the top of the North Bridge. We use thermoengine heatsink in our test setup.

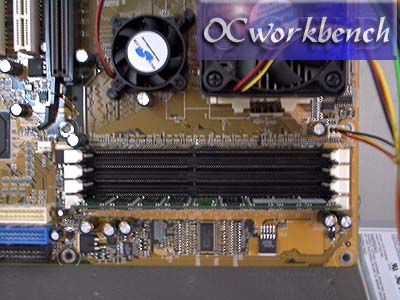

Not most of the mainboard have 4 DIMM slots supporting up to 4GB of DDR RAM.

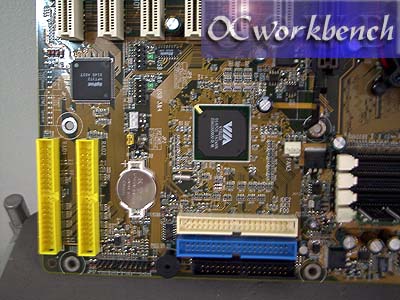

The Yellow connectors are for ATA133 RAID 0/0+1/1. It is supported by the Highpoint HPT372 chipset which provides ATA-133 IDE RAID. The blue and white colour connector are normal ATA-100 IDE connector.
