SiS645DX Ref Board Gallery (2)
Overclocker 4 March 2002

BIOS Screen Shots

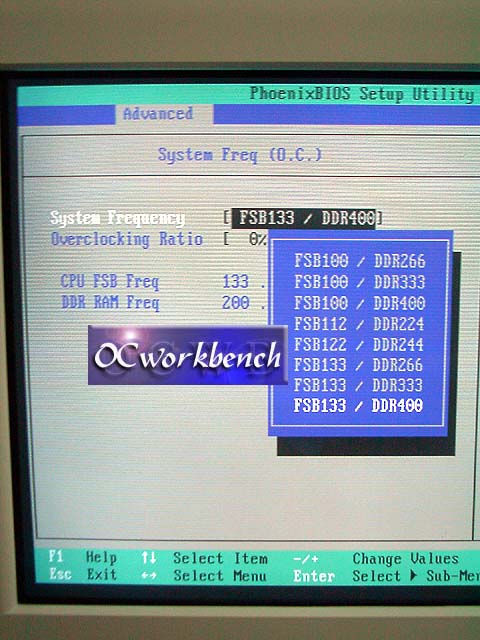

Selectable options to run the memory in Async Mode.

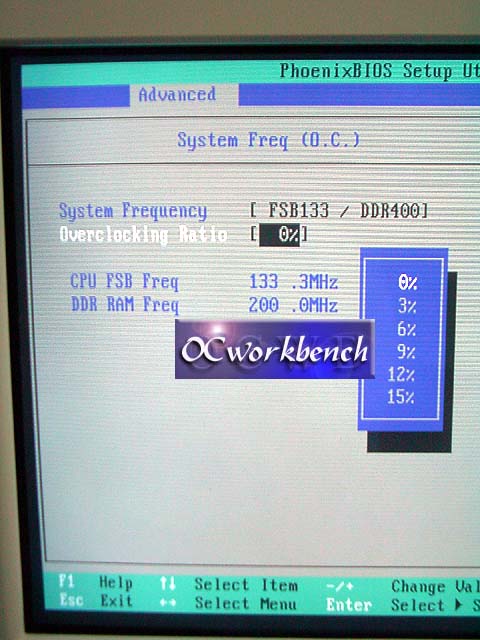

Overclocking features ? You can increase the FSB and of course it affects the Async memory setting too by 3,6,9,12 and 15% then the default.

E.g. to run 152.95, you set Overclocking ratio to 15%, so 133x1.15= 152.95Mhz, the ram is also applied by an amt of 15%.
