SiS648 Ref Mainboard Gallery (1)
Overclocker 13 Jul 2002

The Mainboard

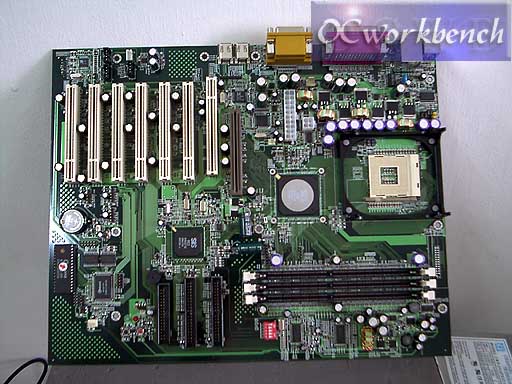

One of the largest ATX board you can ever find

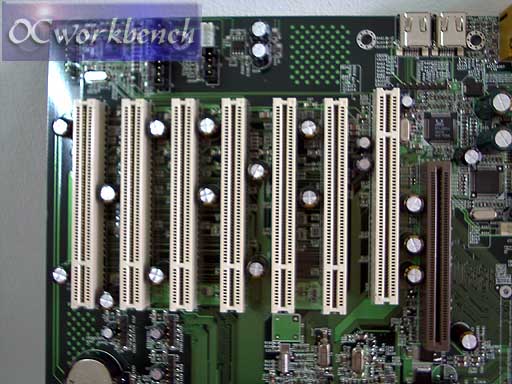

6 PCI slots, 1 AGP and 1 ACR slot, 2 firewire ports right behind the ACR slot

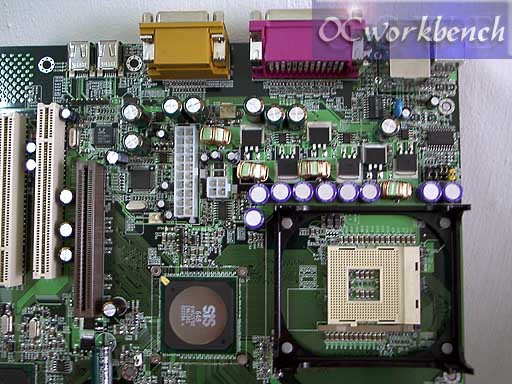

Power connector, the MOSFETs for 3 phase power supply and jumper (in yellow) for CPU Vcore adjustments from 1.5 v ~ 1.75 v

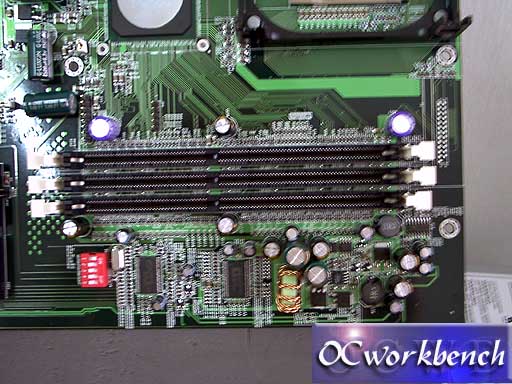

3 DIMM slots

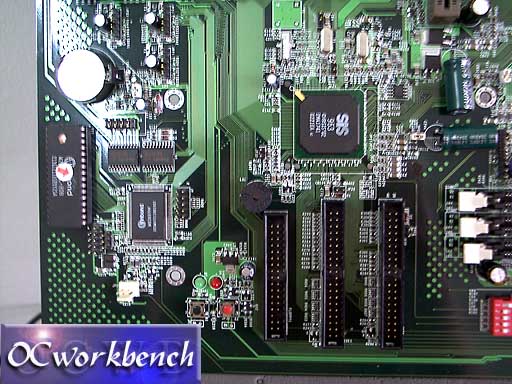

963 South Bridge supporting ATA-133, USB 2.0. Button based power on and reset switch (black / red)
