SiS745 Reference board (2)
Overclocker 28 Feb 2002

Benchmarking

We conduct the usual tests on the setup with the following configuration :

Test System:

AMD AthlonXP 1500+ and Thermoengine heatsink/fan
IBM 15G 7200RPM ATA100 HD
AOPEN 40X CDROM
MSI Geforce3 Ti200 Graphics card
Nanya DDR333 256MB DDR
Channelwell 375W AMD Approved PSU

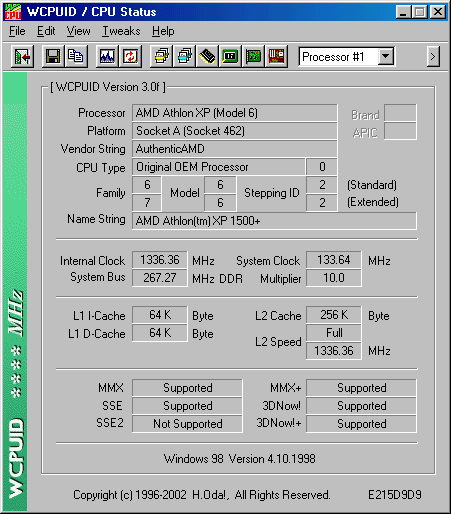

WCPUID reveals 133.64Mhz FSB. The system is set to perform at it's maximum speed as indicated in the BIOS (see picture of Gallery p2).

WCPUID Screen Shot

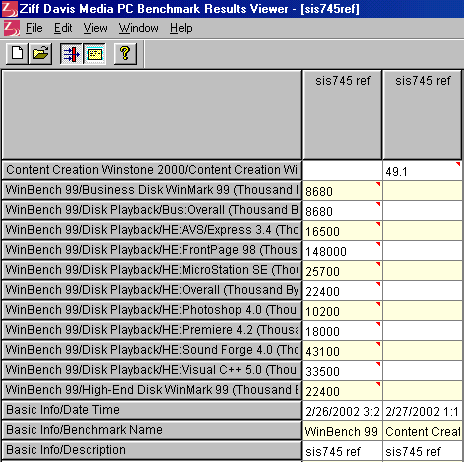

ZD Winbench99 and CC Winstone 2000 scores

Summary

Based on the AthlonXP1500+

Looks like the Content Creation results are quite consistent on the SiS745 which is higher than those of SiS735 (Leadtek 7350KDA and ECS K7S5A). In fact Looking at the Business Disk Winmark results, the other boards that uses an ATA-133 interface is definitely better off with the Maxtor ATA133 HD. but the SiS745 ref board which we paired up with an ATA-100 HD scores well in the Business Disk Winmark : 8680 if we compare to all the boards we have tested so far which uses ATA-100 interface + HD.

	Iwill XP333 v2.0 CAS2 Fast	SiS 745 Ref board Ultra timings	ECS K7S6A Ultra timings	Leadtek 7350KDA Ultra timings	ECS K7S5A Ultra timings
CC Winstone2000	48.5	49.1	49.1	46.2	46.1
CPUMark99	124	-	-	125	123
FPUmark99	7230	-	-	7240	7260
Business Disk Winmark	6790	8680	7810	6260	8630
High End Disk Winmark	23100	22400	22400	20800	24800

	MSI KT3 Ultra ARU 1T cmd, Cas2, Ultra DDR266	MSI KT3 Ultra ARU 1T cmd, Cas2, Ultra DDR333	Gigabyte 7VRXP 1T cmd, Cas2, Ultra DDR266	Gigabyte 7VRXP 2T cmd, Cas2, Ultra DDR333	Shuttle Ak35GTR 1T cmd Cas 2	Gigabyte 7VTXH+ 1T cmd, Cas2	ABIT KR7A RAID CAS2, 1Tcmd,CPU Fast Command decode Ultra	EPoX 8KTA+ Cas2,1T CMD	Shuttle AK31 v3.1 Peformance Defaults	MSI K7T266 Pro2-RU High Performance Defaults
CC Winstone2000	48.7	49.5	50.2	49.7	49.8	49.8	49.1	48	48	46.2
CPUMark99	-	-	-	-	-	-	128	126	125	126
FPUmark99	-	-	-	-	-	-	7290	7300	7270	7290
Business Disk Winmark	13000	12900	13100	13200	8080	13330	6930	5660	7410	7190
High End Disk Winmark	27500	27600	26800	27300	22800	27400	23100	22500	25700	24400

FSB

Shuttle AK35GTR = 133.5Mhz
MSI KT3 Ultra ARU = 133.34Mhz
Gigabyte 7VRXP = 133.9Mhz
ECS K7S6A = 133.9Mhz
Gigabyte 7VTXH+ = 134.2Mhz
ABIT KR7A RAID = 133.39Mhz
EPoX 8KHA+ = 133.64Mhz
Iwill XP333 = 132.68Mhz
Shuttle AK31 v3.1 = 133.5Mhz
MSI K7T266Pro2-RU = 133.8Mhz
Leadtek 7350KDA = 132.77Mhz
ECS K7S5A = 132.77Mhz
