ABIT DiGiDice AB-2003 i865G SFF Barebone Gallery (3)
Overclocker 13 Oct 2003

Remember to visit our Chinese edition of OCW at http://www.ocworkbench.com/chinese.stm bookmark it today.

The Package / Barebone

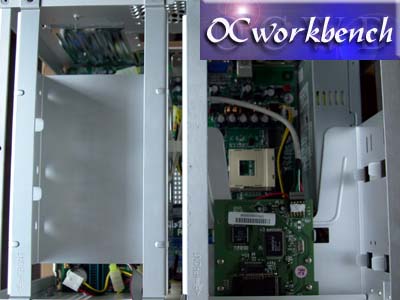

On the left is the HDD Bracket which can hold 2 HDDs. On the right is the 2 CDROM/CDRW bays.

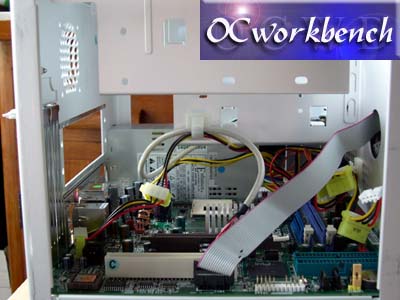

The internal of the DiGiDice

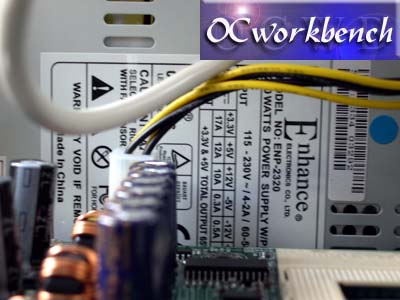

Enhance ENP-2320 PSU is used.

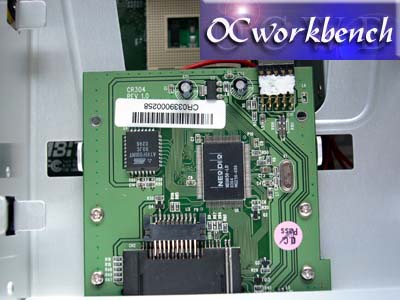

This is the SD and CF card reader (top view)

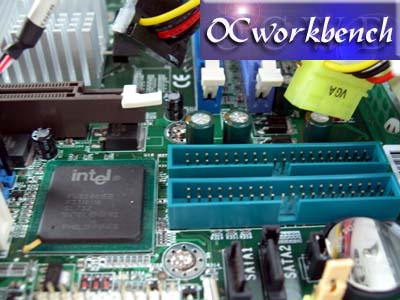

2 SATA ports and 2 IDE channels. CMOS and Battery right next to the left rear of the box. Intel 82801EB ICH5 is used on board.

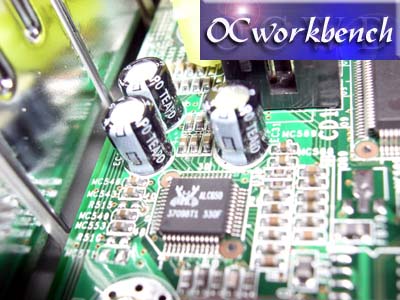

6 channel audio provided by ALC650 chipset

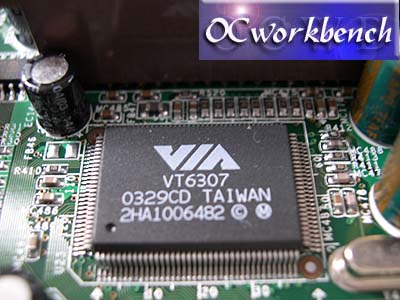

VIA VT6307 provides the 1394 support

Realtek RTL8101L supporting 10/100MBps LAN
