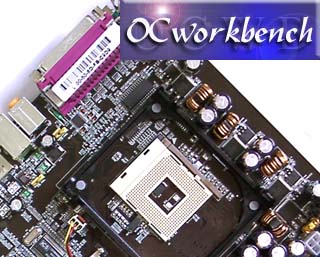

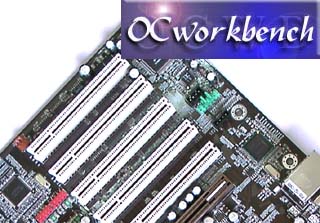

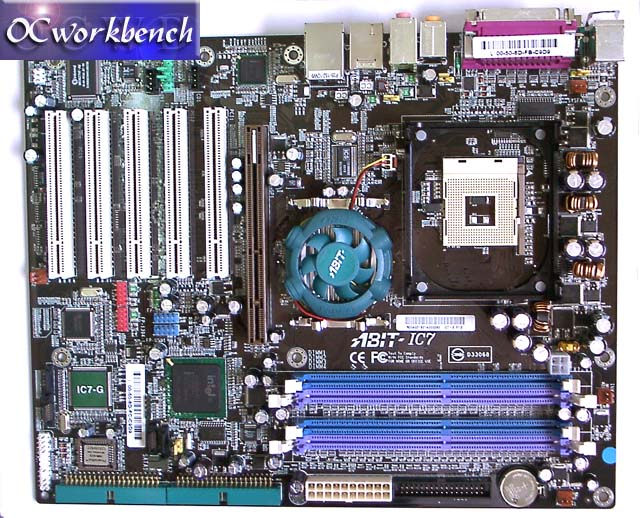

Top Right Corner of the mainboard. From here we can see 5
PCI slots and 1 AGP Pro slot. The on board audio codec used is ALC650 6 channel.
Intel Gigabit Ethernet chipset. |
The Socket 478 and the North Bridge. ICS
952607EF is used for controlling the large range of FSB. (up to 412Mhz FSB
selectable within BIOS). A 4 phase voltage design is used on board for
utmost stability. |
 |
 |
|

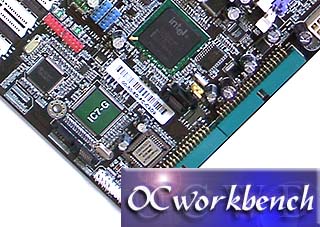

ICH5R supports two ports of SATA in RAID 0.
The other two ports of SATA is supported by SiliconImage Sil3112A chipset
(IC7-G sticker on it). This Sil3112A supports SATA RAID 0 or 1. |

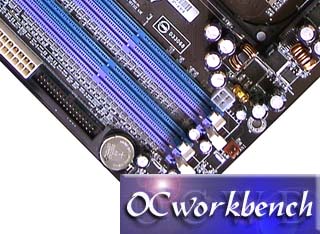

Four 184-pin DIMM sockets. Supports 4 DIMM
Single/Dual Channel DDR 400 memory.(Max. 4GB). Supports configurable ECC
function |
 |
 |
|

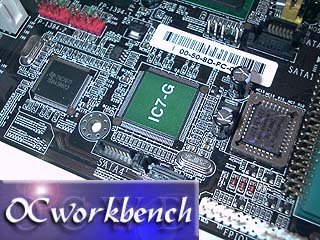

SilconImage Sil3112A SATA chipset (with
IC7-G sticker on top). |

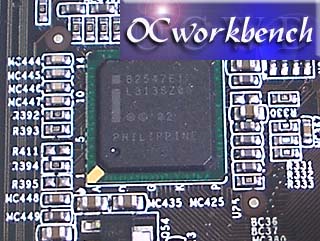

Intel 82547EI CSA Gigabit Ethernet chipset
on board. |
 |
 |
|

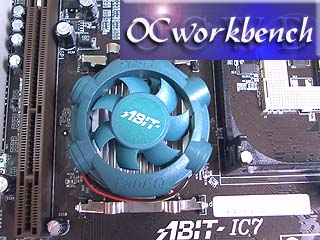

Control your CPU Fan Speed with the easy to
use ABIT FanEQ™ interface and the makes the system quieter than before. |

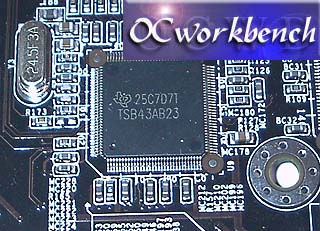

TI chipset supporting 2 x IEEE 1394 ports |
 |

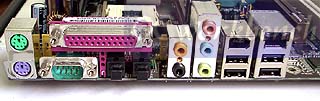

The back panel of the IC7-G is well equipped
with multimedia connectors + 4 USB, 1 Gigabit LAN and 1 x 1394 port. |
