ASUS K8V Deluxe Athlon 64 K8T800 Mainboard Gallery (2)
Ken C 12th Nov 2003

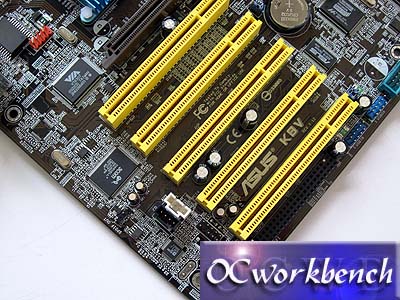

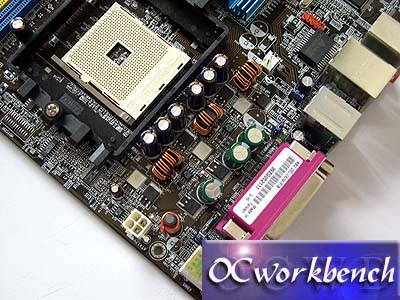

1 Wi-Fi Slot, 5 PCI, 1 AGP 8x slot. The audio chipset AD1980, Gigabit Ethernet LAN chipset from 3COM and VIA 1394 controller are mounted here.	+12v powre connector and the Socket 754. The board uses a 3 phase voltage regulator.

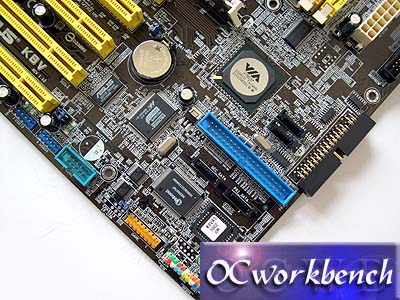

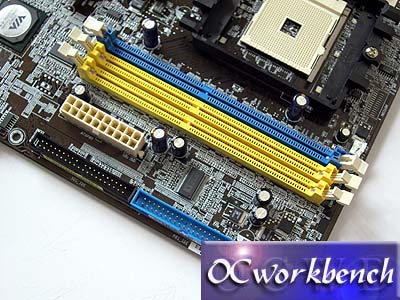

Colourful front panel connectors, 4 SATA ports supporting RAID 0/1/0+1 and IDE by Promise Controller. 8237 supports another 2 SATA ports SATA RAID 0, 1 & 2 IDE ATA133. USB, COM2 connector are located on the rear left of the board.	3 DIMMs slot supporting up to 3GB of DDR400. Power connector, 2 IDE channels

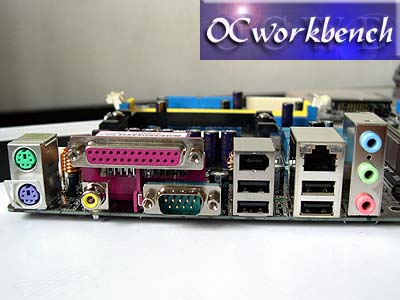

The Back panel of the mainboard. SPDIF out, PS/2 Keyboard & Mouse ports. Parallel and Com port. 4 USB, 1 x 1394, 1 x Gigabit Ethernet and the audio ports.
