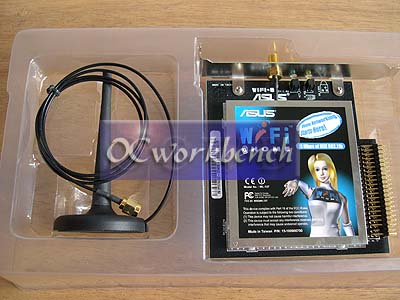

Wi-Fi card + external Omni-directional
Antenna. ASUS Wi-Fi slot is special in a sense that it supports Software
Access Point. It bundles an exclusive Software AP to save the costs of an
actual hardware AP. The proprietary slot supports 802.11g. With an upgrade
of the card, you can easily run it at higher speeds in future. |

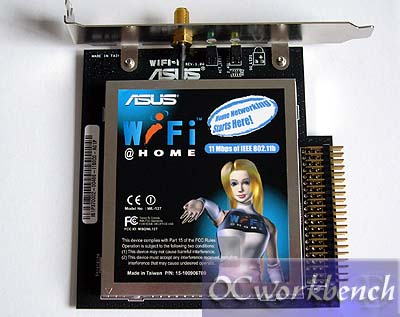

The Wi-Fi card supporting 802.11b. To be
slotted into the Wi-Fi slot on the ASUS Mainboard. This card is dual purpose
as it serves as a client device, it can also function as a Software AP so
that other wireless devices can connect to it. Thus you can save on a
hardware AP. |
 |
 |
|

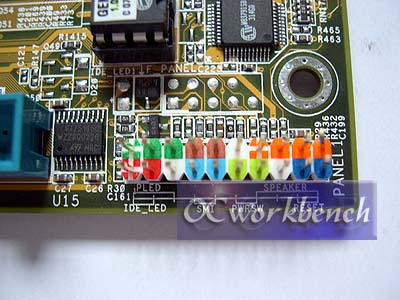

Colour coded front panel comes to ASUS. With
this new colour coding of the front panel connector, it reduces the chance
of shorting the wrong pins. |

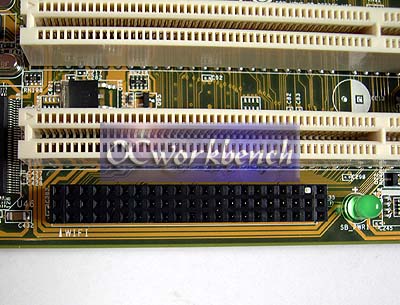

The proprietary
Wi-Fi slot, based on the 802.11b standard, is specifically designed for the
ASUS WiFi-b™ add-on card to set up an environment for home wireless LAN. The
ASUS WiFi-b™ add-on card bundles the exclusive Software AP (access point) to
save the extra cost of an actual AP. In addition, the card comes with
user-friendly utilities and applications that allow quick connection to
notebooks, PDAs and other WLAN peripherals. The proprietary slot supports
the 802.11g standard for future upgrades.
(Note: The WiFi-b™ card with software AP has to be purchased separately) |
 |
 |
|

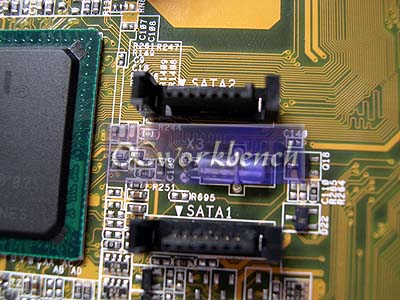

Intel 82801ER supports 2 SATA RAID ports. |

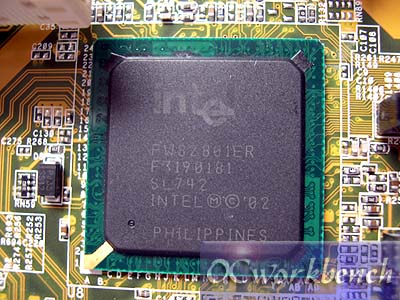

2 SATA ports supported by the South Bridge
82801ER. |
 |
 |

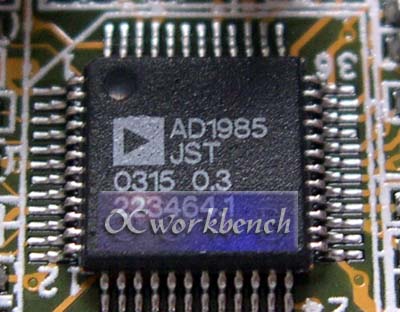

| The SoundMAX
Digital Audio System is the industry's highest performance and most reliable
audio solution for business perfessionals, audiophiles, musicians, and
gamers. SoundMAX Digital Audio System can output 5.1 channel surround sound
and features state-of-the-art DLS2 MIDI synthesizer with Yamaha DLSbyXG
sound set, 5.1 Virtual Theater™ and supports and major game audio
technologies including Microsoft DirectX™ 8.0, Microsoft DirectSound 3D,
A3D, MacroFX, ZoomFX, MultiDrive 5.1, A3D and EAX. |

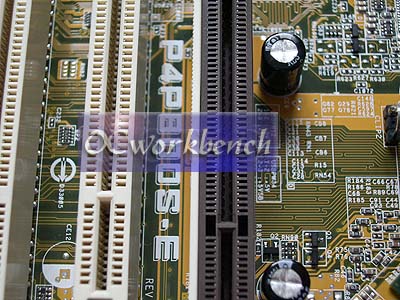

AGP Slot with retention unit. |
