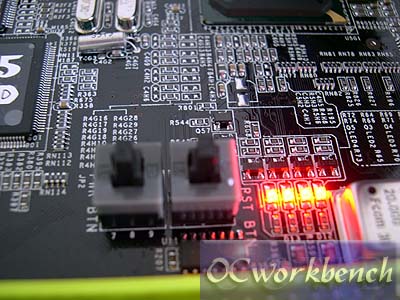

No more meddling with Power and Reset jumpers
on the board. The Power button and Reset buttons are built on board. It is
easy for DIY users to test the board then to short the wrong pins. |

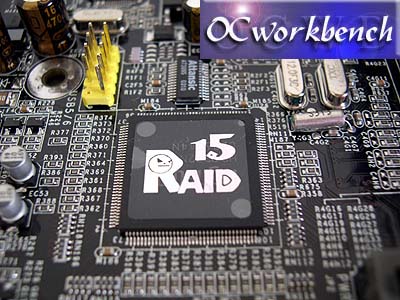

Highpoint RAID Chipset supporting RAID 0, 1,
0+1 and 1.5
Two independent IDE channels support 4 hard disk drives (UDMA modes
33/66/100/133 or EIDE)
Supports PIO modes 0/1/2/3/4, DMA modes 0/1/2 and UDMA modes 0/1/2/3/4/5/6
|
 |
 |

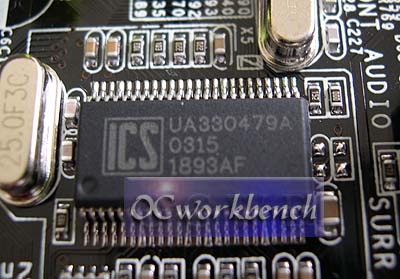

ICS1893 Phy
chip onboard supports integrated IEEE 802.3,
10BASE-T and 100BASE-TX compatible PHY
The other LAN port is supported by Realtek
RTL8101L fast ethernet controller supporting integrated
IEEE 802.3, 10BASE-T and 100BASE-TX compatible PHY |

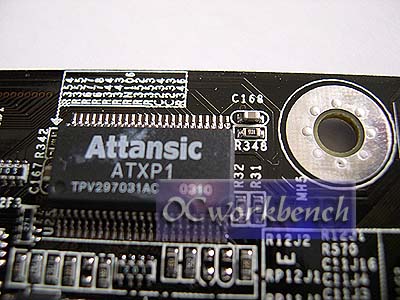

The Attansic ATXP1 is commonly used on most
overclocking boards. |
 |
 |
|

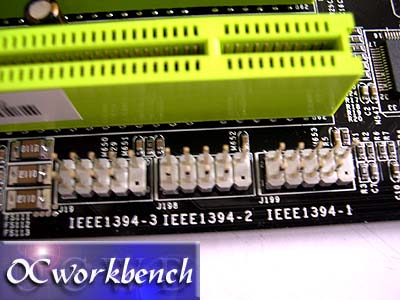

3 ports of IEEE 1394 for connecting to
external brackets supported by Agere chipset. |

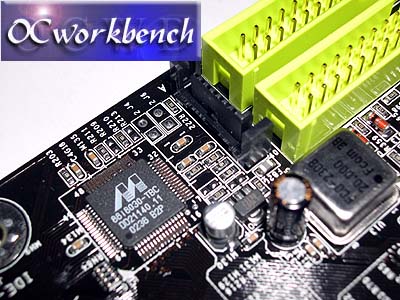

Uses Marvell 88i8030 chip
Supports one SATA (Serial ATA) interface which is compliant with SATA 1.0
specification
(1.5Gbps interface) |
