ECS 755-A2 SiS 755 Gallery/Preview
(2) Ken 24 Dec 2003
Mainboard Screen Shots

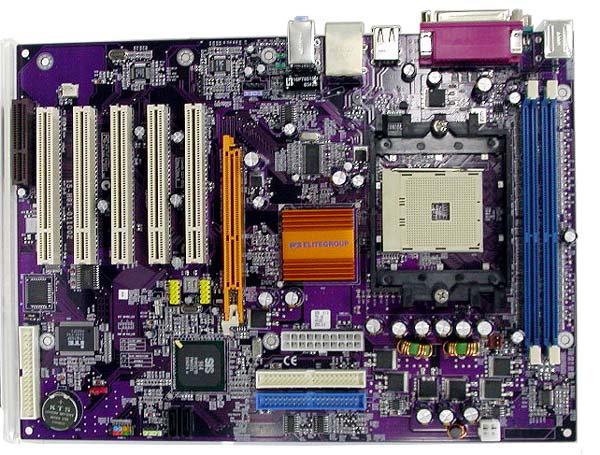

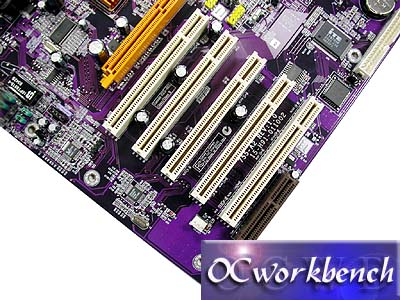

1 CNR, 5 PCI
and 1 AGP 8x slot. Realtek Audio Codec - ALC655. Realtek ALC655 supports
port sensing.

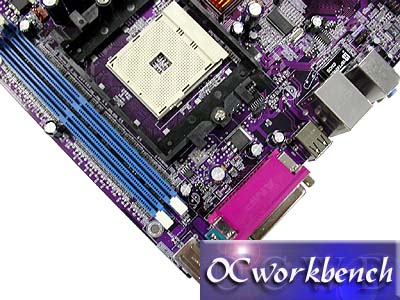

Socket 754 with
2 DIMMs supporting up to 2GB DDR400. Back panel consists - ps/2 mouse
& keyboard
4 x USB ports, 1 x RJ45 LAN connector, 1 x LPT, 1 x COm1, 1 x Audio port.
Realtek RTL8201BL 10/100 Ethernet chip on board supports the LAN port.
Floppy
connector, colour coded front panel connector. ITe I/O controller chip, SiS
964 South Bridge with 2 SATA ports. USB yellow connectors

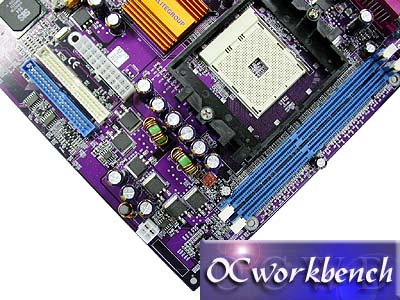

+12v aux
connector + power connector. IDE connectors. 2 DIMM Slots on the right rear
of the board.
