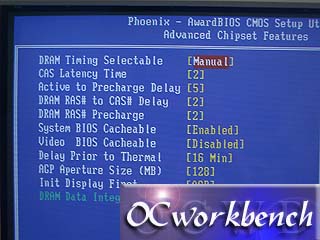

Under Advanced Chipset Features, we set the CAS Latency to
2, then 5-2-2 is set to precharge, ras to cas and ras precharge, the rest
are set to defaults. |

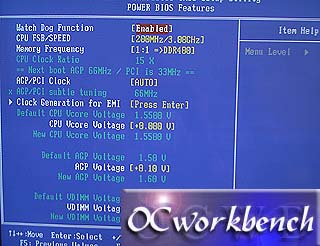

Under Frequency/Control there are many

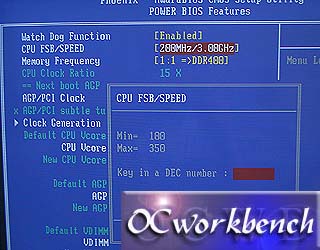

options which you could adjust. The first is the CPU Host Frequency which
is the FSB. For P4 800Mhz, it is 200Mhz, The BIOS allows you to select up
to 350Mhz FSB at 1mhz steppings.
At SPD, our system even POSTed at 235Mhz FSB. |
 |
 |
|

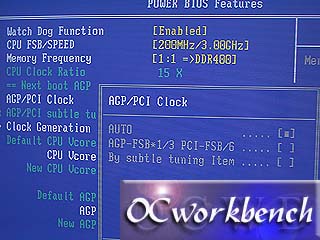

The PCI/AGP can be fixed at 33/66 or
AUTO or using the calculation involved. |

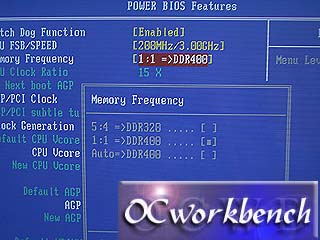

Memory Frequency can be a
ratio of the FSB. In this case, we run it 1:1 |
 |
 |
|

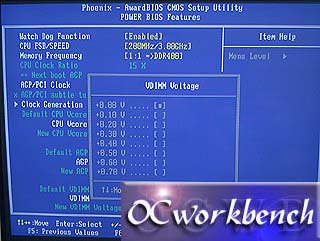

The VDimm voltage can be
adjusted and you can add up to 0.7v of the base voltage of 2.2v |

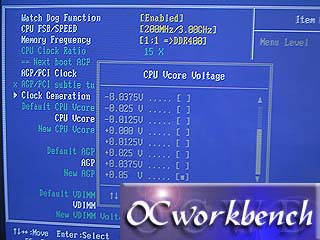

CPU
voltage can be adjusted up to 0.05v of the default
which we find it a limitation to our overclocking. |
 |
 |
|
Watch Dog function
enables the system to boot to normal default fsb if it exceeded the
overclocking potential of the chip. |

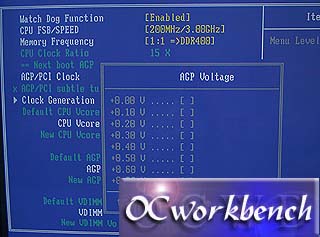

AGP voltage like Vdimm can be adjusted
up to 0.7v of the default. |
