EPoX 4PEA800 i845PE Gallery (2) Overclocker 29 Mar 2003

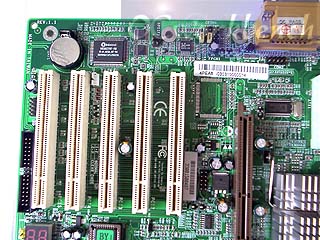

Top Right Corner of the mainboard. From here we can see 5
PCI slots and 1 AGP slot. The on board audio codec used is Realtek ALC650
6 channel. On the left of PCI Slot 5 is the floppy connector next to it is
USB3 for connector to external USB bracket. The Winbond W83267 I/O chip is

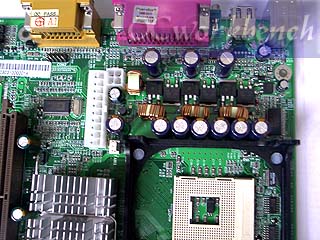

The Socket 478 and we see a 3 phase voltage
design is used on this board. The ATX 12V and ATX power connector are on
board. Beneath the heatsink is the 82845PE northbridge.

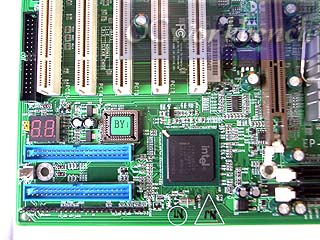

2 x ATA 100 IDE channels, the BIOS, the
Intel 82801DB south bridge. The debug led.

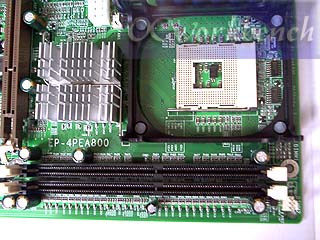

2 DIMM slots supporting up to 2GB of

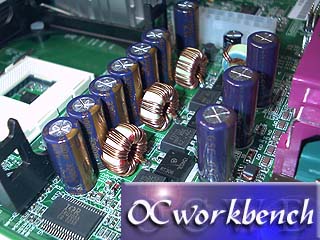

A 3 phase voltage circuit is implemented on

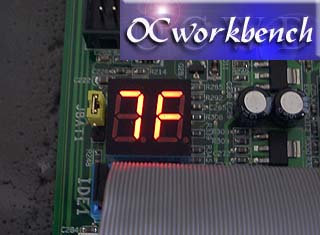

Debug LED on board allows users to easily
identify what is wrong with the board under normal and overclocked

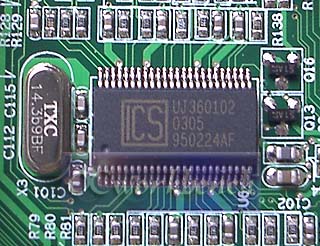

ICS 950224AF clock generator chip is used on
this board which allows a large range of FSB.
