Gigabyte
7NNXP nForce2 Mainboard Gallery (3) Overclocker 15 May 2003

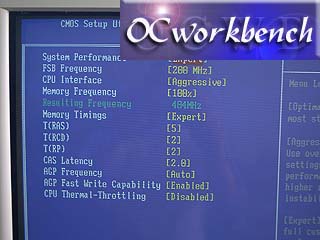

Under Advanced Chipset Features, we set the CAS Latency to
2, then 5-2-2 is set to precharge, ras to cas and ras precharge., Memory
Freq is set to 100% that means run sync 1:1 to CPU fsb of 200mhz (barton
3000+ (400)).

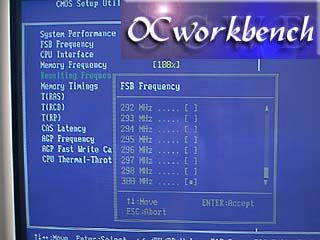

FSB can be adjusted from 100 ~ 300Mhz at
1mhz stepping. Quite a large range.

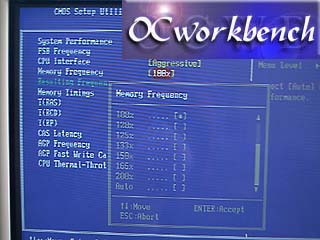

Memory Frequency Ratio can be set to run at
at a ratio of the CPU. 100% = 1:1

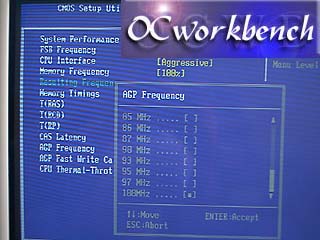

The AGP can be fixed at 66, AUTO orany other
settings up to 100Mhz.

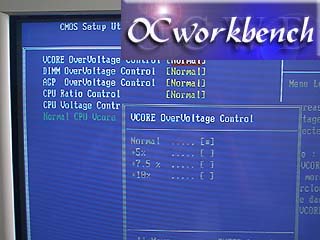

Vcore voltage can only be increase by 5%,
7.5% or 10% of its default voltage.

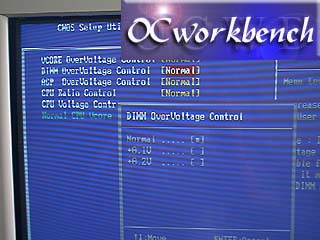

DIMM voltage can be up to +0.2v of default.

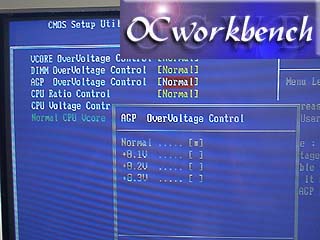

AGP voltage can be up to 0.3v of default.

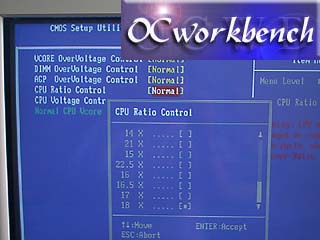

CPU Ratio is selectable up to from 5.0x ~
22.5x at 0.5x interval

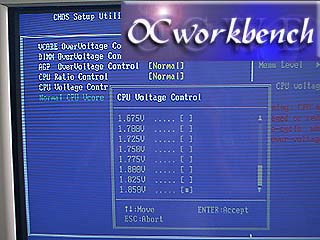

CPU Voltage control can be be set from 1.10v
~ 1.85v. Together with the Vcore Overvoltage control, the max is 1.85v +
10% (1.85) = 2.035v.
