5 PCI slots and 1 AGP slot. ITe I/O controller chip ITE I/O IT8712F-A. Realtek ALC658 CODEC for 6 ch audio.
Two Realtek LAN chipset for Dual Gigabit LAN

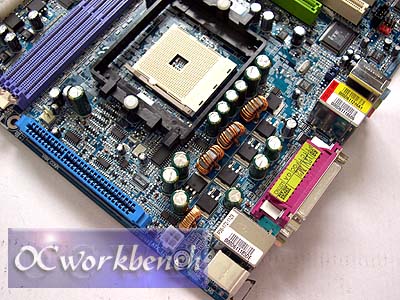

The Socket A, DPS slot, heatsink for the
north bridge. A 3 phase design is implemented. +12v connector
On the side of the board are connectors for 1394 ports, USB

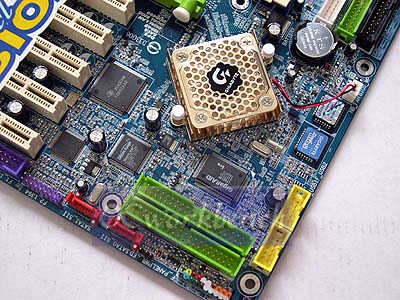

brackets. The green coloured IDE ports are the IDE RAID supported by the
GigaRAID chipset. The two Red SATA ports are supported by the SiliconImage
SATA chipset.

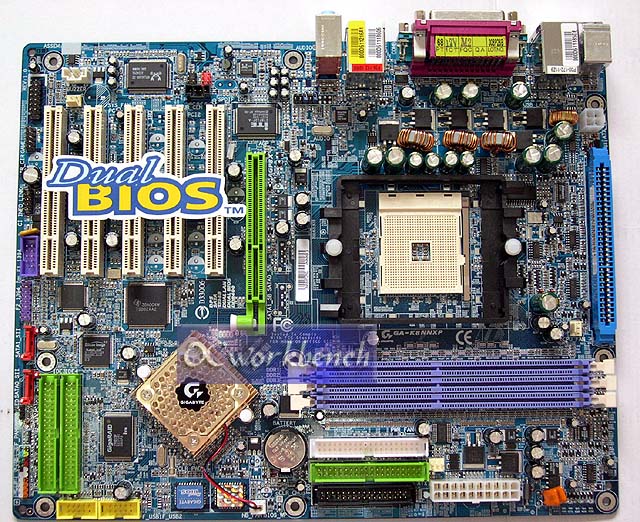

There is Dual BIOS on this board for maximum
protection when flashing the wrong BIOS occurs.

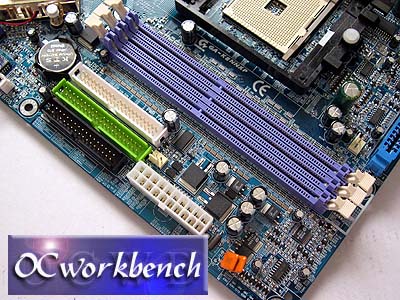

3 DIMM slots supporting up to
3GB of
DDR266/DDR333/DDR400 using 184pin unbuffered DDR.

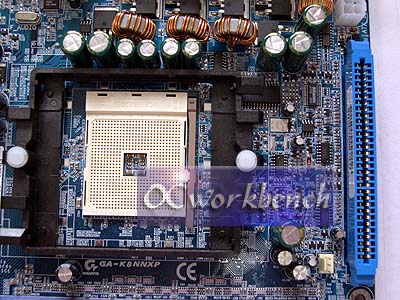

The DPS socket for plugging in
the DPS unit shown on the right hand side.

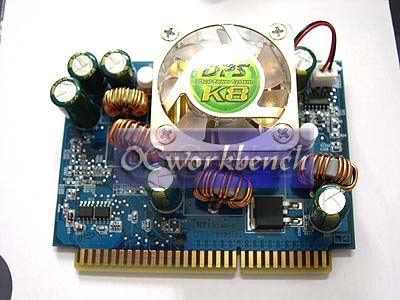

DPS Unit Dual Power Sysytem
K8 (DPS K8). Specially designed for AthlonTM64 platform, the
Dual Power System delivers a total of 6-phase power circuit to provide
more solid and durable power supply for the new generation AMD platform.

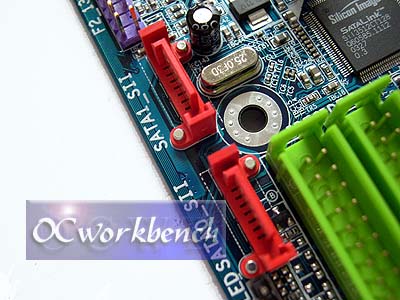

2 SATA ports
supported by Sil3512CT128 chipset for SATA RAID 0,1.

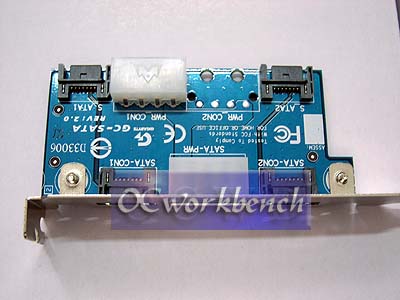

SATA bracket for connecting to the on board SATA connectors
so that HDD can be connected outside the PC casing using SATA.
