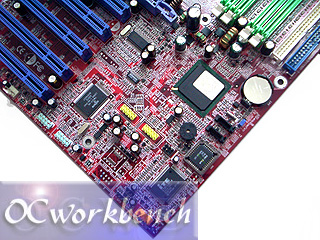

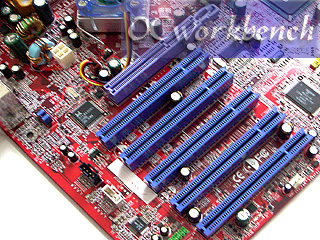

Top Right Corner of the mainboard. From here we can see 5
PCI slots and 1 AGP slot. The on board audio codec used is Realtek Al650.
Realtek 10/100Mbps chipset 8100BL is on board right behind the AGP slot. |

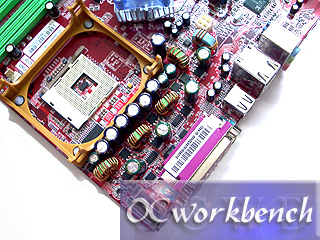

The Socket 478 and the North Bridge. ICS
952607 is used for controlling the large range of FSB. (up to 400Mhz FSB
selectable within BIOS) |
 |
 |
|

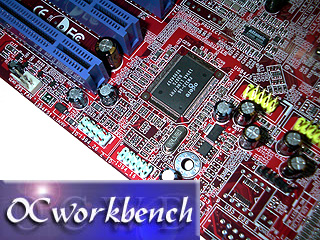

Intel South Bridge
controller ICH5R supports 2 ports of SATA RAID 0. iTE 8712F-A IO
Controller chip is seen on the corner of the board. |

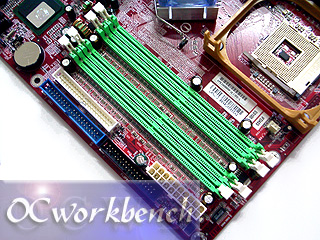

4 DIMM slots supporting up to 4GB of
DDR266/DDR333/DDR400 using 184pin unbuffered non ECC DDR allowing up to
6.4GB/s data transfer rate. Registered DIMMs are not supported. |
 |
 |
|

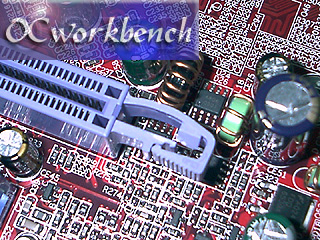

A new AGP retention mechanism is used on
this board. One of the best so far. |

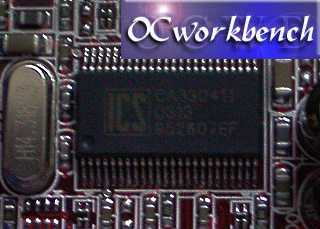

ICS 952607 is used for controlling the large
range of FSB but the BIOS limits it to 233MHz only. |
 |
 |
|
Agero FW323-06 supports 2 ports of IEEE 1394. |

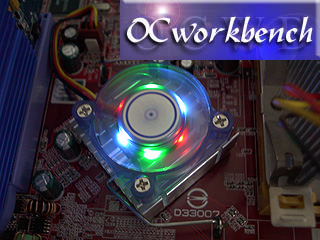

The 3 colour "spinning" colours which looks excellent in
your casing in the night. |
|
|
|
