Shuttle SN41G2 nForce2 IGP SFF Review (1)
Overclocker 6 Jan 2002

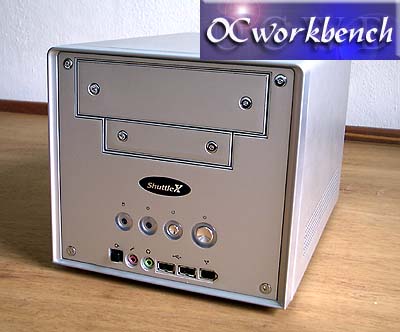

Users of the Shuttle SS40 must have been waiting for this AMD box for a long long time. With the recent proven performance lead of nForce2 in the AMD mainboards, Shuttle introduces its long awaited SN41G2. SN41G2 is an integrated board using the nVIDIA's nForce2 IGP chipset that provides not only Dolby Digital audio, it also includes a dual view VGA with on board GF4 MX equivalent video performance. With the nForce2 Dual Channel DDR technology, it brings games to another level with better overall system performance

This box only measures (L)300*(W)200*(H)185  2.85Kg (N.W.)  and a weight of 4.48Kg (G.W.) and it definitely suits most modern homes. Below is a list of the specifications of the box followed by the gallery.

Specifications

Form Factor: Shuttle Form Factor
CPU Support
 AMD Duron CPU with 200 MHz FSB
 AMD Athlon CPU with 200 / 266 MHz FSB
 AMD Athlon XP CPU with 266 / 333 MHz FSB
Chipsets:
 North: nVidia nForce2 Crush18G
 South: nVidia MCP-T
Memory:
 2 x 184 pin Dual Channel DDR SDRAM Socket
 Support DDR200/266/333/400 DDR SDRAM up to 2GB capacity
VGA: Build in Crush18G
 AGP v3.0 Compliant
 Built-in a high performance 256-bit 3D engine
Audio: Realtek ALC 650
 AC 97 v2.2 (supports 5.1 channel) compliant CODEC on board
 Support Digital SPDIF In/Out
IDE interface:
 2 x UltraDMA/100 IDE Channels Master from MCP-T
 80-pin Cable Backward Compatible Legacy ATAPI Devices
 ATAPI IDE CD-ROM, CD-R, CD-RW, and LS-120 Supports
IEEE 1394a : Realtek 8801B
 Complies with 1394 OHCI specification revision 1.0
 Support 400Mb/s, 200Mb/s, 100Mb/s data transfer rate
TV-Out: Chrontel 7005C
 Supports PAL and NTSC Systems
 Supports Composite, S-Video, and Component R/G/B Output.
 Supports maximum input active resolution to 800x600.
Ethernet: Realtek 8201
 IEEE 802.3u 100Base-T specifications compliant
 10 Mb/s and 100 Mb/s operation
Expansion Slot:
 1 x AGP 3.0 compliant slot
- Support external AGP V3.0 compliant VGA device
- Support 4X, 8X AGP data transfer
 1 x PCI slot
- PCI 2.2 compliant, 32-bit BUS Master Slots
- 133 Mbytes / sec maximum throughput
Power Management:
 APM 1.2 compliant
 ACPI 1.0 compliant
OnBoard connectors and jumpers:
 3 x fan connectors
 1 x ATX main power connector
 1 x ATX12V power connector
 2 x UltraDMA/133 Bus Master IDE connector
 1 x Floppy connector
 Clear CMOS
OnBoard Headers:
 2 sets of 2x5 pin USB 2.0 header
 1 set of 2x5 pin Front Panel IEEE1394a header
 CD_In header
 Microphone_In header
 Speaker_Out header
 SPDIF_In/Out Header
 Parallel port header
 1 set of IrDA Header
