Shuttle SN41G2 nForce2 IGP SFF Gallery (1)
Overclocker 6 Jan 2002

The box package consists of the barebone and a box consisting of cables, manuals, CDROM. The Shuttle SN41G2 extends Shuttle's tradition of bringing SFF boxes to all incorporating the nVIDIA nForce2 + IGP chipset. nForce2 needs no more introduction as this is by far the fastest chipset for the AMD platforms using Dual Channel DDR technology.

The front panel of the Shutte SN41G2. The faceplate we have over here is metallic grey colour. The usual connectors like the SPDIF, Mic In, Headphone jack, 2 x USB and 1 x IEEE 1394 connector. This box only measures (L)300*(W)200*(H)185  2.85Kg (N.W.)  and a weight of 4.48Kg (G.W.)

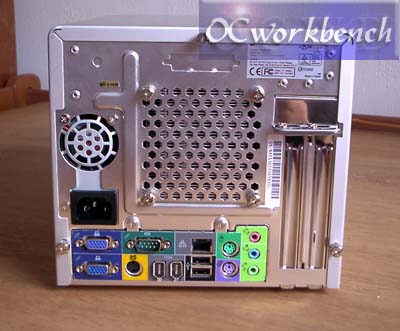

The back plate revealing all the expansion connectors.

Top Row : VGA out (1), 1 COM port, LAN port (10/100Mbps), PS/2 mouse connector (top row : left to right),

Bottom Row : VGA out (2), S-video out, 2 x IEEE 1394 connectors, 2 x 1394,  2 x USB 2.0 ports, keyboard connector.

On the rightmost of the backplate are the audio connectors, 1 x Front out connector, 1 x Rear out connector, 1 x Center/Bass connector. Two slots for 1 AGP and 1 PCI device.
