Shuttle SN41G2 nForce2 IGP SFF Gallery (2)
Overclocker 6 Jan 2002

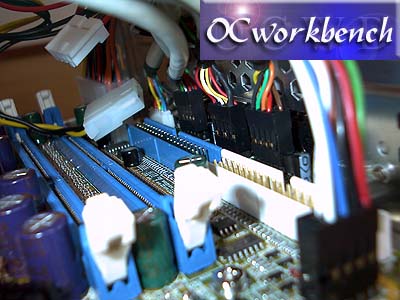

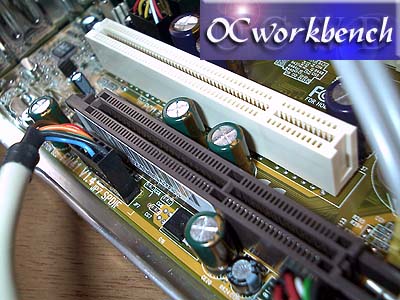

The internal after opening the casing. 1 AGP Slot and 1 PCI slot, 2 DIMM slots supporting Dual Channel DDR (DDR400/333/266/200).

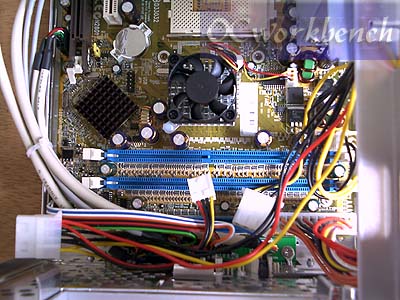

Top View of the mainboard FN41. The chipset with the heatsink is the northbridge nForce2 IGP and one closer to the AGP slot is the south bridge MCP-T.

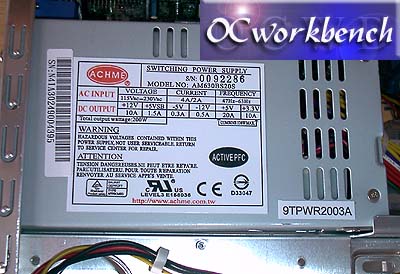

The Power Supply which is a bit noisier compared to the ones used on the SB51G

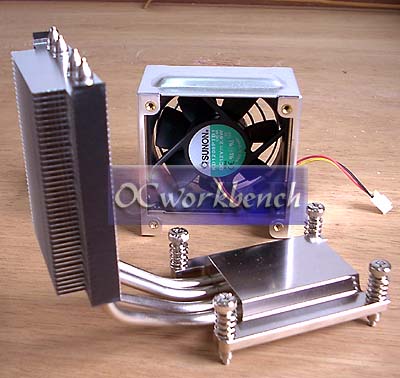

The heatsink pipe and fan with screws for tightening the heatsink to the Socket A. This is a different design from the one used on SB51G where fastening clips were used.
