You can read more about the technology at this SiS website.

This new technology avoids many of the out-of-sync audio, jittery images, low frame rates and possible packet transfer errors. With this new technology, it makes single channel as good as a dual channel design.

This SiS 648FX ref board comes with SiS180 controller. The SiS180 Serial ATA Host controller support two Independent Ports of Serial ATA 150, support Dual IDE Channels with Parallel ATA 133/100/66, PCI Rev 2.3, Software RAID Function - RAID0, RAID1, RAID0+1 and JBOD Function.

The SiS 180 controller can be set to work in two modes : Compatibility Mode and Native mode

In Compatibility mode, With Win98/WinMe OS Default IDE driver

Option 1: Disable 2 PATA Controller in 963L
and use 2S1P in 180 (Max. 4 devices)

Option 2: Disable 2S1P controller in 180 and
use 2 PATA controller in 963L
(Max. 4 devices)

In Native Mode, Native mode support OS
- Both 2 PATA controllers in 963L and
2S1P controllers in 180 can be enabled
• Maximum Support 8 IDE devices
• Native mode support OS is Win2K/WinXP and
Windows.Net Server

The best is native mode since you can hook up to 4 IDE devices to the PATA interface supported by SiS 963L. You can also hook up 2 SATA and 2 HD to the IDE3 and SATA ports (both supported by the SiS 180 chipset). This means that a maximum of 2 SATA and 6 HDD drives can be connected to the board. The interesting thing is that Software RAID function allows you to mix and match SATA and PATA in a RAID 0,1,0+1, JBOD array.

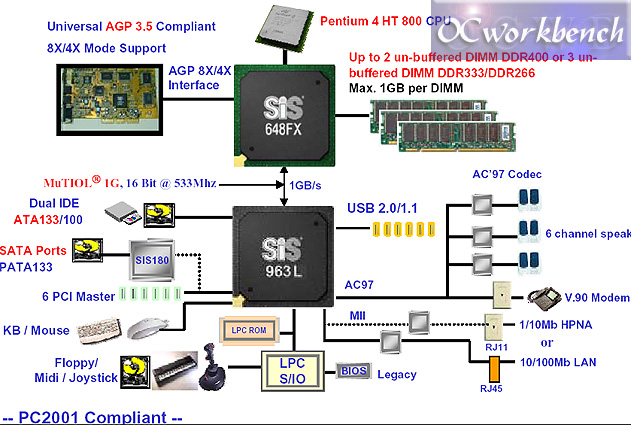

HSE, FSB800, DDR400 Plus AGP8X Chipset for Intel PentiumR 4 HT Platform

 Host Interface Controller

- Support Intel PentiumR 4 HT 800 CPU

- Support Intel Hyper-Threading Technology

- Support 800/533/400MHz Front-Side Bus

 Integrated High Performance Dual Memory Controller

- Up to 2 DIMMs of DDR400, up to 3 DIMMs of DDR333/DDR266

- Support Un-buffered DDR DIMM and up to 1GB per DIMM

- Suspend-to-RAM(STR)

 Support AGP 8X Interface

- Support AGP 8X/4X Interface

- Support Enhancements of AGP v3.5 Register Format

- Support Fast Write Transaction

 MuTIOL 1GR Delivering 1GB/s Bandwidth

- Proprietary Interconnect between SiS648FX and SiS963L

- Bi-Directional 16-bit Data Bus at 533MHz Operating Frequency

 MuTIOL 1GR Delivering 1GB/s Bandwidth

- Proprietary Interconnect between SiS648FX and SiS963

- Bi-Directional 16-bit Data Bus at 533MHz Operating Frequency

 USB 2.0/1.1 Host Controller

- One EHCI USB 2.0 Controller and 2 OHCI USB 1.1 Controllers

- Support Total 6 USB 2.0/1.1 Ports

- Support USB 2.0 High-Speed Device @480 Mb/s Transfer Rates

 Fast Ethernet/Home Networking Controller with MII Interface

- Support 10/100Mb Fast Ethernet or 1/10Mb HomePNA 2.0 with

External PHY

 Audio/Modem Controllers with AC’97 Interface

- AC’97 v2.2 Compliant

- Support 6 Channels of AC’97 Speakers Out and v.90 HSP Modem

 Advanced Power Management

- ACPI 1.0b and APM 1.2 Compliant

 Dual IDE Channels with Parallel ATA 133/100/66

 Support Up to 6 PCI Masters

 LPC 1.0 Interface

 Integrated RTC

 Integrated Keyboard/PS2 Mouse Controller

 PC2001 Compliant

 Support Two Independent Ports of Serial ATA 150

 Support Dual IDE Channels with Parallel ATA 133/100/66

 Support PCI Rev 2.3

 Software RAID Function Support

- Support RAID0, RAID1, RAID0+1 and JBOD Function
