Albatron K8 Ultra U Pro Socket 754 ULi M1689 Mainboard Gallery 1/3
Bluetooth 6 Dec 2004

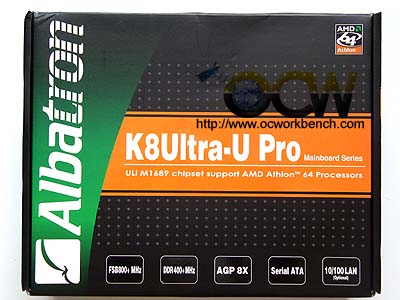

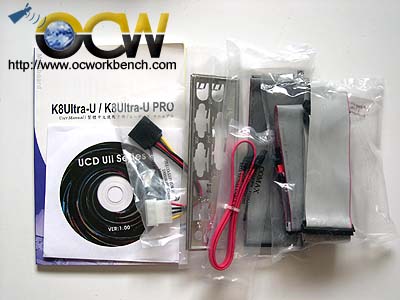

First look - Albatron K8 Ultra U Pro

Albatron K8Ultra-u Proboard is based on the single K8 chipset ULi M1689 and it supports the AMD Athlon 64 Socket 754 processor. With a single chipset, latency is reduced. As it integrates the most important features only, it generates less heat compared to the NF3 or NF4 chipset.

It is equipped with 4 PCI, 1 AGP, 2 SATA (RAID 0,1), 2 IDE, 1 floppy, 2 DIMM slots (up to 2GB DDR400). It also supports 6 ch audio, Fast Ethernet and external USB 2.0 extensions.

Although the board looks basic, it comes with overclocking features e.g voltage adjustments for DDR, Vcore. Multiplier, FSB and FIX PCI is adjustable as well.

Specifications

AMD Athlon[TM] 64 Processor
Socket 754 with FSB 800 MHz
2 DDR 266/333/400 Memory Sockets
6 channel AC97 Audio
ULi M1689 10/100 Ethernet LAN
2 Serial ATA150 Channels
2 ATA133 Channels, up to 4 ATA 133 IDE Devices
8 USB 2.0/1.1 Ports (4 ports by optional cable)


Processor

AMD Athlon[TM] 64 Processor

FSB

800 MHz

Chipset

Chip: ULi M1689 ( Single chip)
AC97 Audio Codec: Realtek ALC655
LAN Chip : Realtek RTL8201CL (PHY)
I/O Chip: Winbond Smart I/O W83627HF


Memory

2 * DDR Sockets:
DDR 266/333/400 NON-ECC DDR SDRAM up to 2GB


Expansion Slots

1 x AGP(3.0) 8X slot (1.5V only)
4 x PCI slots (PCI 2.2 compliant)


IDE Connectors

2 ATA133/100/66 Channels, up to 4 ATA 133/100/66 IDE devices

Onboard I/O Connectors

1 x Floppy Connector
2 x USB 2.0/1.1 header (4 ports by optional cable)
1 x S/PDIF in/out header (S/PDIF in/out cable optional)
1 x CPU fan header ( 1 fan rotation detection function )
1 x System fan headers ( 1 fan rotation detection function )
2 x 5 pin system panel header (Intel spec)
1 x 3 pin Power LED header
1 x Front audio header (Intel spec)

I/O via Back Panel

PS/2 keyboard/mouse, 2 x USB(2.0/1.1), 1 x RJ45, 1 x Parallel, ,1x Line-in/Line-out(Speaker Out)/MIC

Power

20-pin ATX power connector, 4-pin ATX 12V power connector

BIOS Feature

2Mb Flash EEPROM
Award BIOS with ACPI, DMI2.0, PnP, WfM2.0, Green Suspend to RAM (S3), Suspend to Disk (S4) Wake on keyboard/mouse, Wake on LAN/RTC Timer


Hardware Monitoring

2 FAN sensors, CPU/System voltages and temperature monitoring

Special Feature

Zero Jumper Design
Adjustable CPU frequency by 1 MHz increment, Adjustable Vcore, VAGP, VMemory for overclocking.
Watch Dog Timer (auto-reset system when it can not handle overclock configurations)
Special design for CPU Over Temperature Protection.( OTP )

Certifications

FCC, CE, BSMI

Form Factor

ATX (193*293 mm)

Discuss in Forum
