NCQ - Seagate Barracuda 7200.7 ST3160827A 160G with SiliconImage Sil3124 Host Controller (3)
Bluetooth 5 Oct 2004

ATTO Disk Benchmark

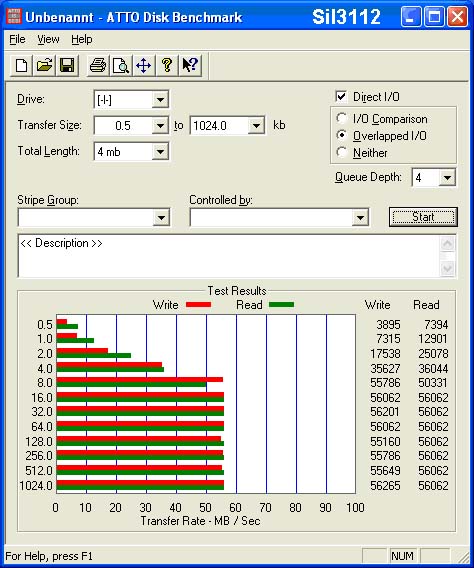

Using the same HDD, we ran the ATTO disk benchmark using Sil3124 and Sil3112 host controller. Sil3124 is a NCQ enabled host controller where Sil3112 is the normal PCI host controller.

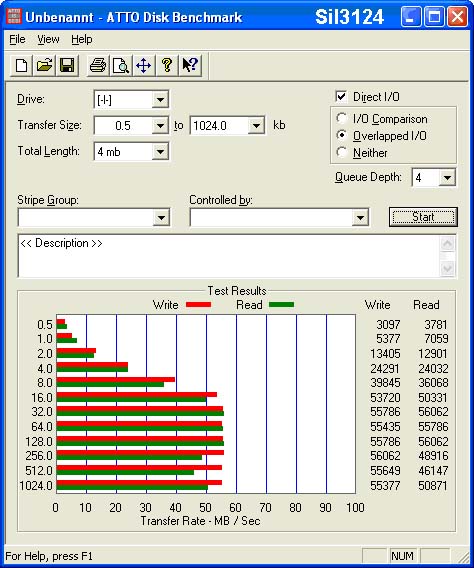

You would see a very similar pattern as this test is basically sequential access and it shows the average transfer rate of 55MB/s (write), 50Mb/s (read) on the Sil3124.
