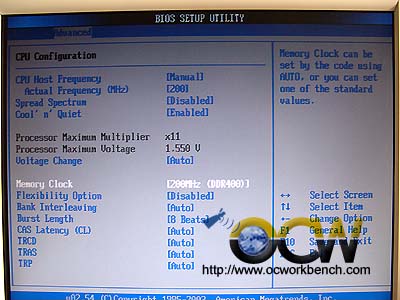

| Advance Menu of the BIOS. On
this page are options available for adjusting the FSB, CoolnQuiet,
Multiplier (can't adjust), Processor Voltage, Memory Clock, Burst Length, CAS/Ram timings. |

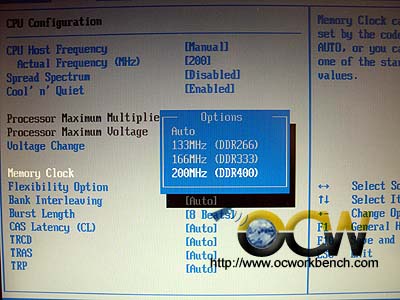

Memory clock can be set to
run in Async mode. |
| Processor Voltage can be set
from 0.80v ~ 1.55v, Memory Clock can be set to Sync 200MHz (DDR400) or
DDR333, DDR266 so that it runs async. to the CPU FSB. FSB is selectable
from 140 ~ 300MHZ FSB. Multiplier control is
available but cannot be adjusted (S754). For Socket A, this item is not
available but you can adjust multiplier with jumpers on board.

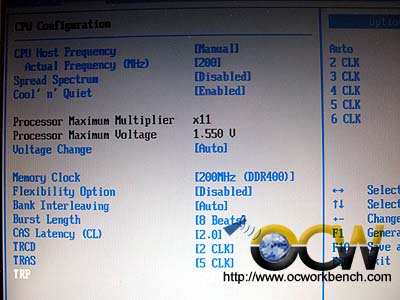

RAM timings are adjustable. CAS Latency, TRCD, TRAS, TRP.
We set it to CAS 2,5-2-2 when running with the upgrade board with a Socket
754 processor. The same set of menu is available when used with Socket A
processor but the ram timings Tras range is limited to 6 and onwards. |

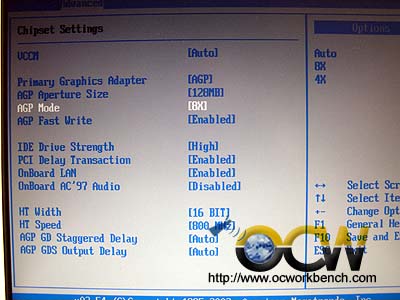

In Chipset Settings, you can
set the Aperture size up to 256M. Fast Write can be enabled. HT Speed up to Auto,
200,400,600,800MHz can be set and HT Width (8 or 16 bits) |
