ASrock K8S8X SiS 755 Athlon 64 K8 Preview (2)

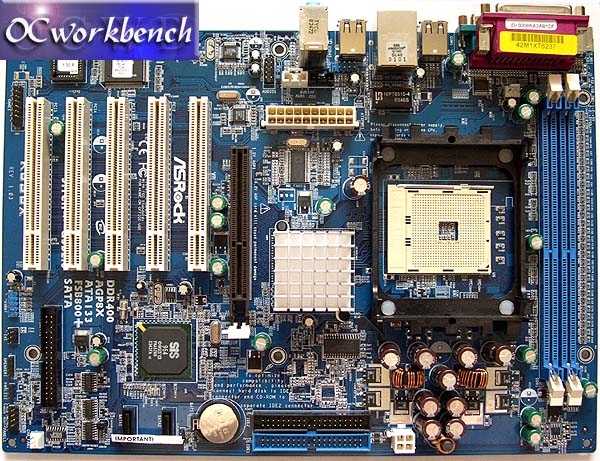

Finished in blue, it looks much better compared to the dirty green that the previous series used. On the mainboard we can see that the North Bridge uses a big heatsink. Did you also noticed that the design looks closer to the ASUS boards. Even the printing on the PCB uses the same font :)

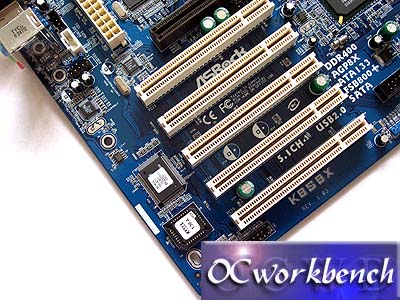

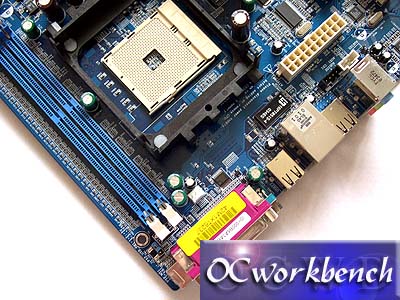

5 PCI slots, 1 AGP 8x Slot. On the mainboard is the audio codec CMI 9739A	2 DIMM slots supporting up to 2GB of DDR400. Socket 754. The Power connector is located separately from the +12 v connector.

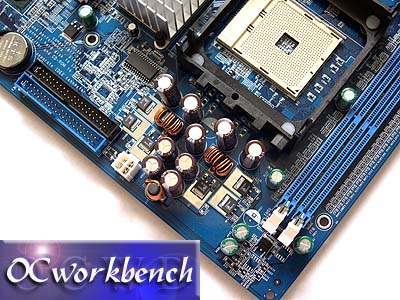

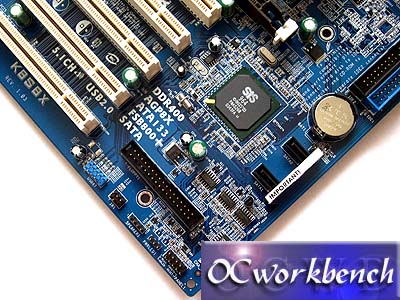

Floppy Connector, BIOS chip, front panel connector. SATA Ports and South Bridge SiS 964	The +12v connector. IDE connectors. Looks like a 2 phase power is in use.

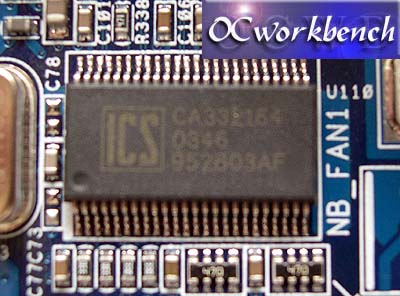

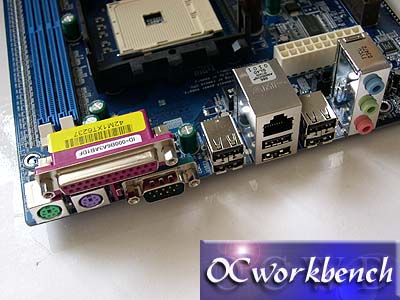

The back panel with PS/2 Keyboard,Mouse connector. 1 COM port. 1 Parallel port. 6 USB, 1 LAN and 6 channel audio ports.	The ClkGen responsible for the large range of FSB to 300MHz
