BIOS (I)

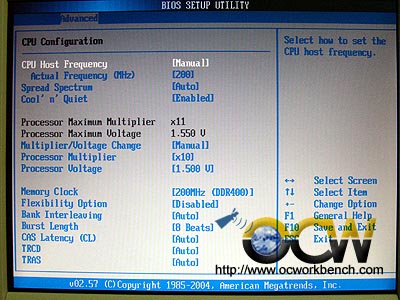

Advance Menu of the BIOS. On
this page are options available for adjusting the FSB, CoolnQuiet,
Multiplier, Voltage, Memory Clock, Burst Length, CAS/Ram timings.
CPU Host Frequency can be set up to 300MHz

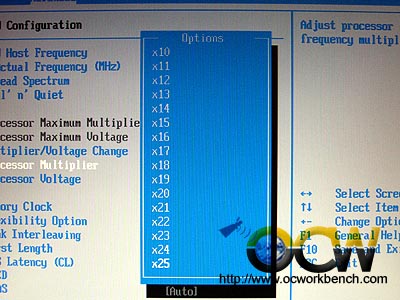

Multiplier can be set from
4x ~ 25x

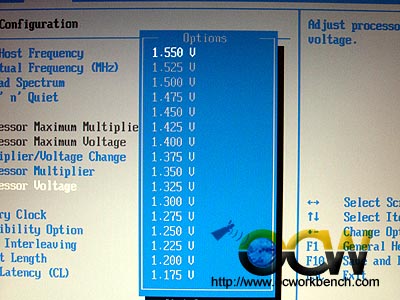

Processor Voltage can be set

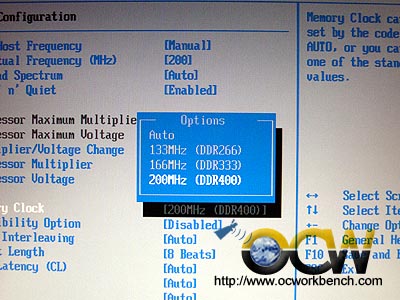

from 0.80v ~ 1.55v, Memory Clock can be set to Sync 200MHz (DDR400) or
DDR333, DDR266 so that it runs async. to the CPU FSB.
Memory Clk can be set to
133,166 or 200. Other options include Flexibility (for ram compatibility),
Burst Length, Cas Latency.

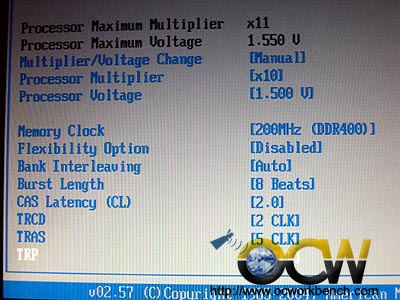

RAM timings are adjustable. CAS Latency, TRCD, TRAS, TRP.
We set it to CAS 2,11-2-2 for our Socket 939 FX53 and CAS 2, 5-2-2 for
Socket 754 AXP3200+

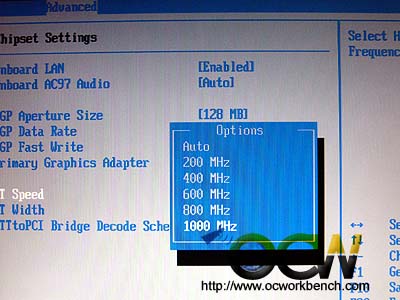

HT Speed, Default is 800Mhz
can be set to 1GHz

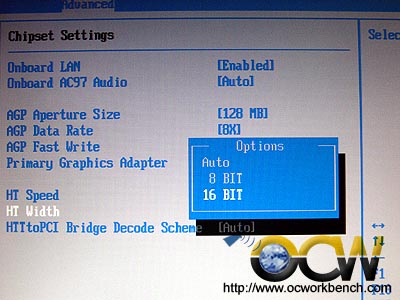

HT Width can be set to AUTO,
8 or 16 bits. When used with 939board, only AUTO and 8 bits are available.
