First look
In the past, we have seen many kinds
of hybrid solutions and they are very popular among end users who wish to
upgrade their board. We have seen such boards like Slot 1/Socket 370 and DDR/SDR
combos. ASrock takes it one step further and stunned the world with the
introduction of a Como upgradeable board for the Pentium 4 - ASrock P4 Combo.
P4 Combo supports
both Socket types 478 and 775 using the Intel 848P single channel chipset. With
this hybrid design, you need not upgrade your board to tap the power of the
Prescott LGA775 processors in the near future when prices drop. This board
supports the traditional 8x AGP instead of PCI-E. Thus you can also save some
costs on upgrading the AGP card while upgrading the processor. The board supports
Serial ATA, Integrated LAN, 6 USB, 10/100 Ethernet LAN, 5.1 ch audio, 1xAGP, 4xPCI,
2x DIMM slots.
- 1 x AGP8X/4X slot, 1.5V
- 4 x PCI slots ( PCI 2.3 compliance)
VGA
N/A
Audio
- CMedia CMI9739A 6 channel AC'97 audio codec
LAN
- Realtek RTL8101 PCI 10/100 Fast Ethernet
controller
- 802.3u, WOL supported
Connector
- 2 x SeialATA 1.5Gb/s connectors
- 2 x ATA 100/66 IDE connectors ( supports 4 x IDE devices)
- 1 x Floppy connector
- CPU/Chassis FAN connectors
- 20 pin ATX power connector
- 4pin +12V ATX power connector
- IDE LED connector
- CD/AUX audio in header
- Front panel audio connector
- 2 x USB 2.0 port pin header
- 1 x Game/MIDI port pin header
Rear Panel I/O
ASRock I/O Plus
- 6 x USB2.0 ports
- 1 x RJ45 LAN port
- 1 x VGA port
- 1 x PS2 Keyboard connector
- 1 x PS2 Mouse connectors
- 1 x Parallel port (LPT1)
- 1 x Audio ports ( Line In/Out, Mic In)
BIOS Feature
- 2Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP
Support CD
- Drivers, Utilities, PC-cillin 2002 OEM,
ASRock PC DIY Demo
ASRock LGA775 CPU Installation Live Demo

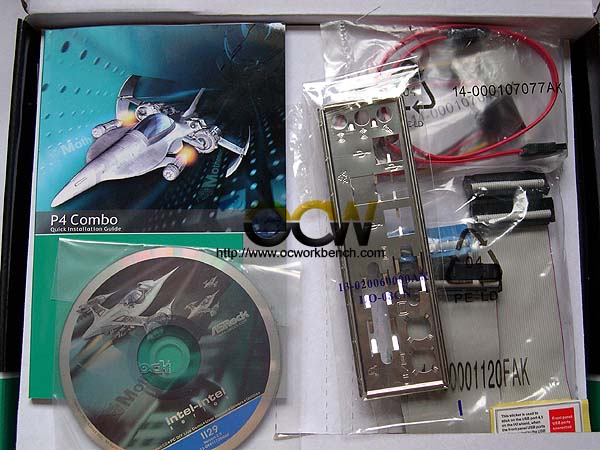

Accessories
- Quick Installation Guide, Support CD, I/O
shield
- Floppy/ATA 100 cables
- 1 x SATA data cable
- 1 x SATA 1-to-1 power cable
