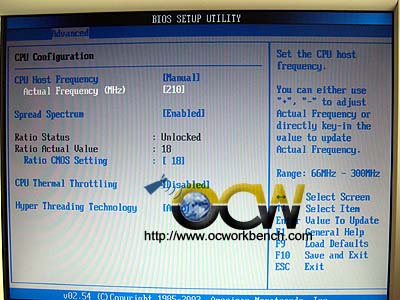

| CPU host Freq can be set to
Manual and you have a FSB range of 66 ~ 300 (1MHz stepping). IN our case,
we have a P4 3.6G ES, Multiplier option is available from 12 to infinity
(amazing). You can turn on/off CPU thermal throttling and hyperthreading
in this menu. |

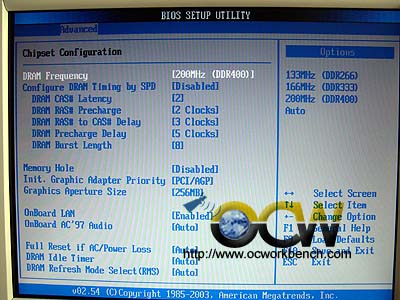

We set our DRAM Frequency to
200MHz (DDR400) so that it runs in SYNC with CPU. If you are overclocking,
you can run the FSB to 266 and still run your memory at 213 if you choose
to run DRAM Frequency at DDR333. That is a 5:4 ratio kicks in. If you set
it to AUTO and your FSB is too high, the 5:4 will automatically be

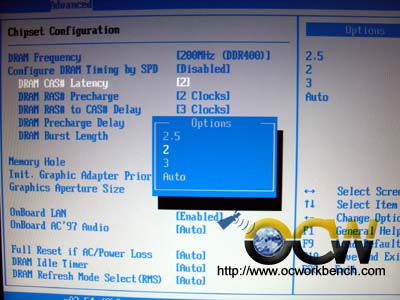

selected. In this menu, you can select the ram
timings, burst length, graphics aperture size etc. |
