DFI Lanparty UT nF3-250Gb Socket 754 Gallery 3/5
Bluetooth 12 Sep 2004

BIOS (I)

The BIOS offers many options for fine tuning the system. CMOS Reloaded is apparently absent in this BIOS.

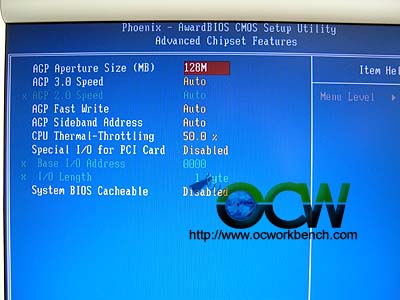

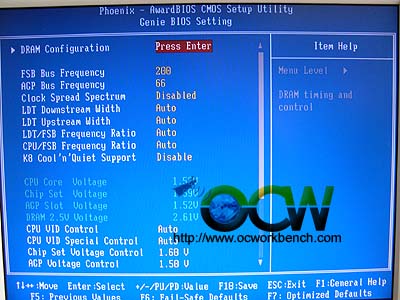

Under the Advanced Chipset Features, there are the options like Fast Write, Sideband Addressing, Cpu thermal-Throttling, BIOS cacheable  etc In the Genie BIOS setting there is a submenu DRAM Configuration which allows you to adjust the ram timings. The rest of the section allows you to modify the FSB, AGP fix freq, LDT width, Multiplier control (CPU/FSB Freq ratio), Cool n Quiet. CPU Vcore control and offset, AGP voltage.

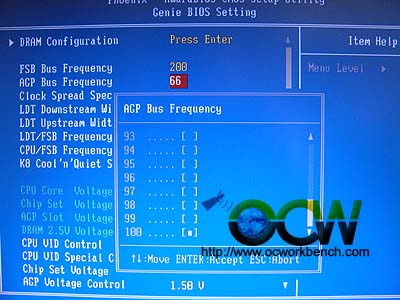

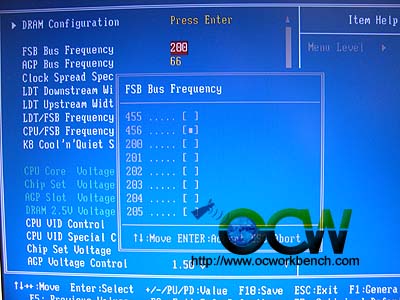

This board has the most amazing Frequency range that we come across. It has a whopping range of up to 456MHz which you can select AGP Freq can be fixed at 66 or you can set it up to 100MHz  to boost the AGP performance.

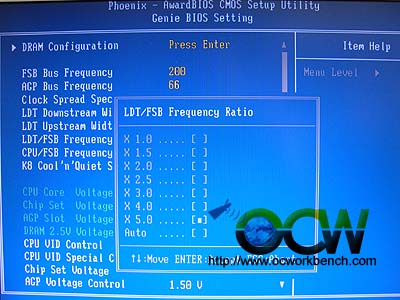

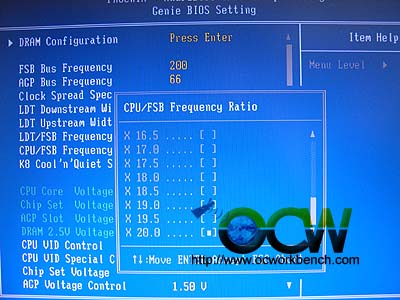

The HTT of up to 5x is selectable. Multiplier control allows you to select half multipliers too and up to a maximum of 20x is selectable.
