ECS PT880-A VIA PT880 P4 Mainboard Preview/Gallery (1)
Bluetooth 1 Mar 2004

ECS is probably the only manufacturer that does almost all chipsets available. ECS PT880-A is ECS's latest offering with VIA PT880 chipset supporting the Pentium 4 platform.

The board has a ATX Form Factor and is extremely clean and features a 3 phase design with a +12v connector to ensure stability. The board comes with 3 slots supporting Dual Channel DDR400 for best memory performance.

This board has uses the VIA South Bridge VT8237 supporting SATA RAID and conventional IDE. It also has 4 USB 2.0 ports on board for expansion.

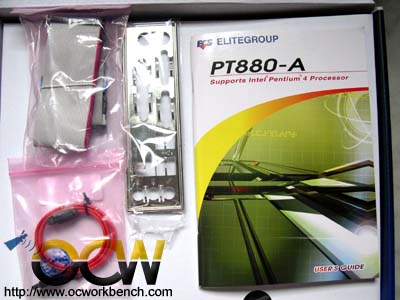

The Package

CPU

Socket 478 for Intel Pentium 4 processor

FSB 800/533/400 MHz

Support Hyper-Threading Technology

CHIPSET

VIA PT880 & VT8237

North Bridge: VIA PT880

South Bridge: VIA VT8237

MEMORY

Dual -channel DDR memory

3 x 184-pin DDR DIMM socket support up to 3GB

Support DDR400/333/266/200 2.5V DDR SDRAM

EXPANSION SLOT

1 x AGP 8X/4X slot

5 x PCI slots

1 x CNR slot

STORAGE

Support by VT8237

-4 x Ultra DMA133/100/66 devices

-2 x Serial ATA devices

RAID0, RAID1 configuration

AUDIO

Realtek ALC655 6-channel audio CODEC

Compliant with AC'97 2.3 specification

LAN

VIA VT6103 10/100 Mbps Fast Ethernet PHY

REAR PANEL I/O

1 x PS/2 keyboard & PS/2 mouse connectors

4 x USB ports

1 x RJ45 LAN connector

1 x Parallel port (LPT1)

2 x Serial ports (COM1 & COM2)

1 x Audio port (Line-in, Line-out, Mic-in)

INTERNAL I/O CONNECTORS & HEADERS

1 x 20-pin ATX Power Supply Connector & 4-pin 12V Connector

1 x Floppy connector - supports 360K~2.88M ByteS, 3 Mode FDDs or LS120

2 x IDE connectors

2 x Serial ATA connectors

2 x USB 2.0 header support additional 4 USB ports

1 x Speaker header

1 x SPDIF out header

1 x Front panel switch/LED header

1 x Front panel audio header

CD in/AUX in header

CPUFAN/CASFAN connectors

SYSTEM BIOS

Award BIOS with 2Mb Flash ROM

Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI

Supports ACPI revision 1.0 specification

FORM FACTOR

ATX Size, 305mm*220mm
