ECS PT880-A VIA PT880
P4 Mainboard Preview/Gallery (2) Bluetooth 1 Mar 2004

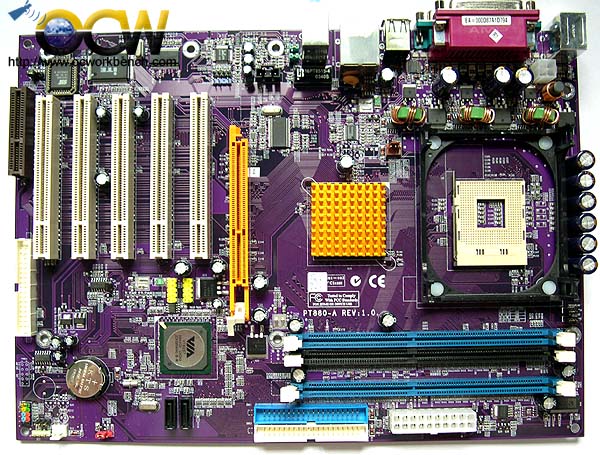

The Mainboard

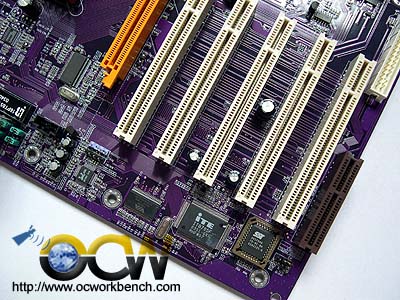

5 PCI slots,
1 AGP 8x, 1 AMR slot. VIA VT6103 10/100 Mbps Fast Ethernet PHY.
Realtek ALC655 6-channel audio CODEC

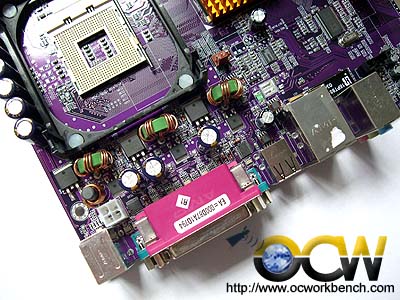

The Socket
478. +12v connector. A 3 phase design is in place for better stability.
Floppy connector and
coloured front panel connector
SATA / IDE ports supported
by VT8237
-4 x Ultra DMA133/100/66 devices
-2 x SATA devices with SATA RAID
Power
connector, IDE channels (1&2) by 8237.

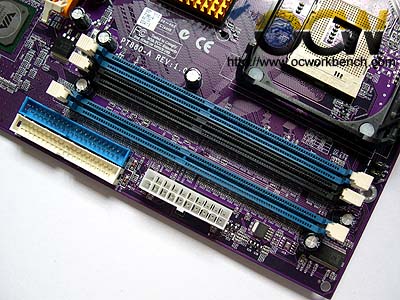

Dual -channel DDR memory
3 x 184-pin DDR DIMM socket support up to 3GB
Support DDR400/333/266/200 2.5V DDR SDRAM
