Foxconn 755A01 SIS 755 Athlon 64 K8 Preview/Gallery (2)
Bluetooth 5 Feb 2004

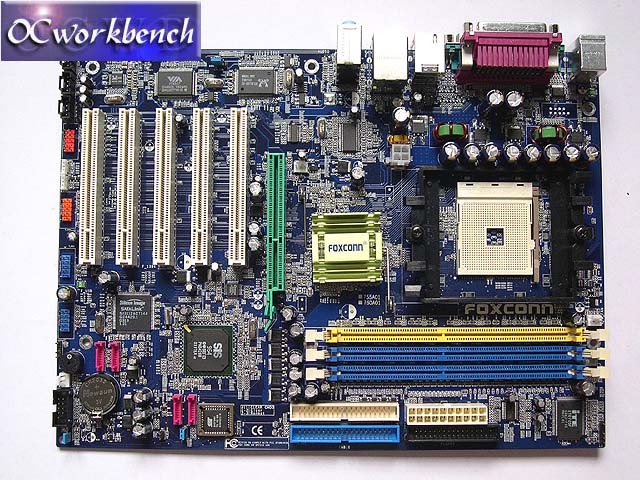

The Mainboard

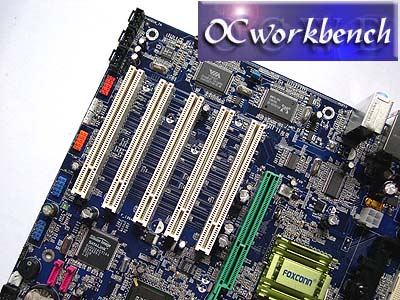

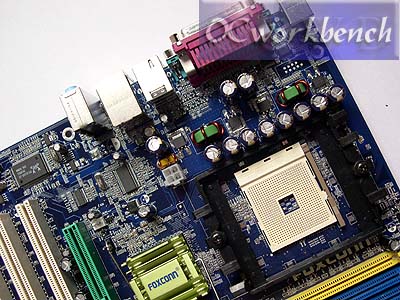

5 PCI slots, 1 AGP 8x. On the mainboard is the audio codec Realtek ALC655. On the side are external connectors for Firewire (Orange) and USB (Blue) Socket 754. Looks like a 2 phase power regulator is in works with 12v connector on board.

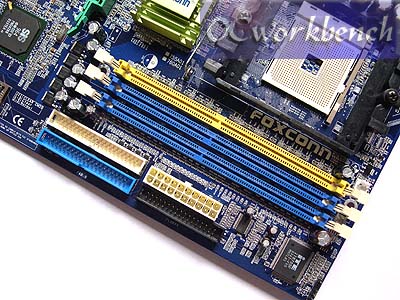

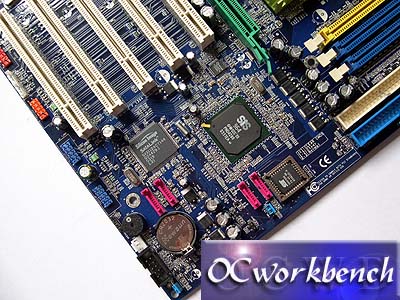

2 SATA RAID Ports supported by SIS 964 South Bridge and 2 SATA ports supported by SiliconImage Sil3112 chipset. BIOS, CMOS clear, BIOS protect jumpers are unique. 2 DIMM slots supporting up to 2GB of DDR400. Socket 754.The Power connector and +12v connector. IDE connectors.

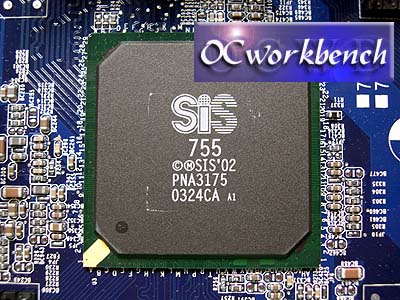

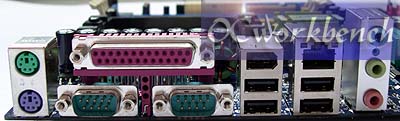

The back panel with PS/2 Keyboard,Mouse connector. 2 COM port. 1 Parallel port. 4 USB, 1 x 1394, 1 Gigabit LAN and 6 channel audio ports, The heatsink is attached to the North Bridge 755 using a thermal pad. I replaced it with thermal paste for better heat dissipation.
