BIOS (II)

These are some of the more specific options available in the BIOS F2G. It is similar to the F1 BIOS.

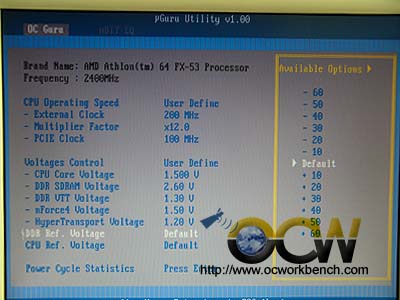

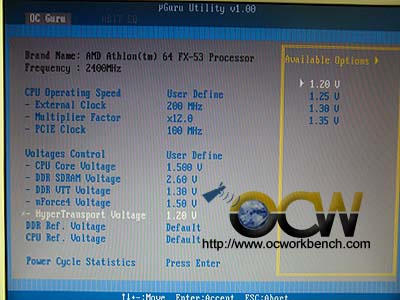

Hypertransport voltage 1.20v ~ 1.35v	DDR Ref voltage : -60mV to +60mV

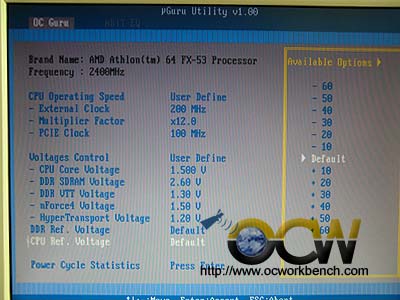

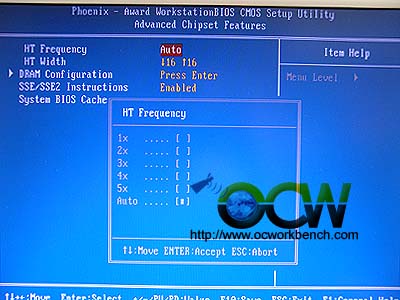

CPU Ref Voltage : -60mV to +60mV	HT Multiplier 1x ~ 5x, AUTO

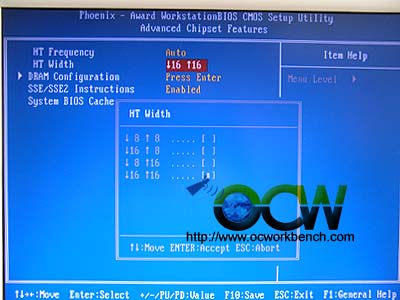

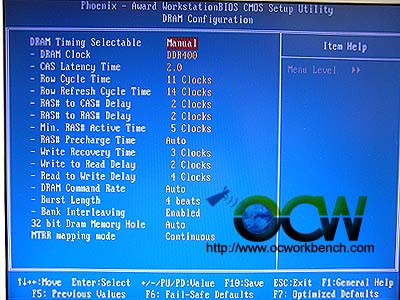

HT Width, Up Down 8x8, 8x16, 16x8 or 16x16 combinations	DRAM timings. Common ones to be adjusted are DRAM Clock for ASync setting (100,133,166,200). CAS Latency: 2, 2.5, 3 tRAS, tRP, tRCD, Burst Length My settings, CAS 2, 5-2-2 (tRAS,tRP,tRCD)
