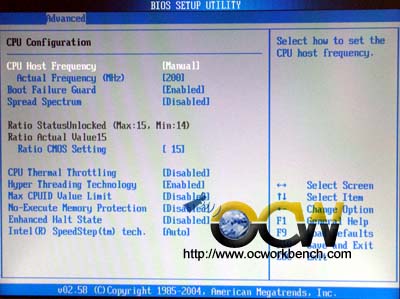

CPU Host
Frequency can be set to 200-300MHz. There is also a Ratio which is the
multiplier of the CPU that can be lowered if you are using a ES. |

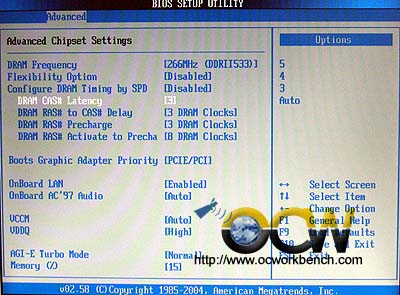

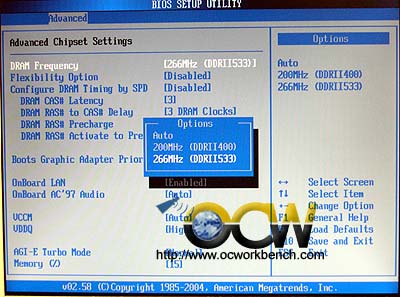

Using
DDR2-533 Corsair Modules, we are presented with a selection of the DRAM
Frequency type DDR2-533 or DDR2-400. If you use DDR modules, available
selections will be DDR333 or DDR400. DRAM timings can be adjusted. VCCM,
VDDQ can be set to high or auto for stability during overclock. |
You can
select SPD to configure the RAM or set it manually. |

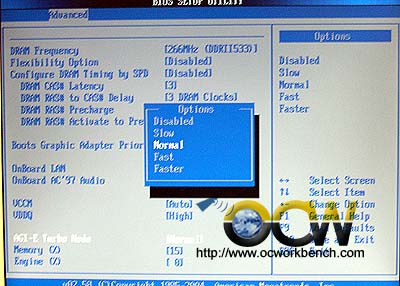

If you want to increase
the freq of AGI-E, you can select various turbo modes of adjust the memory %
and engine %. |
