ASrock 775i915PL-SATA2 Intro 2/4
Bluetooth 22 Sep 2005

Pricing of
7800GTX

>>>

Gallery

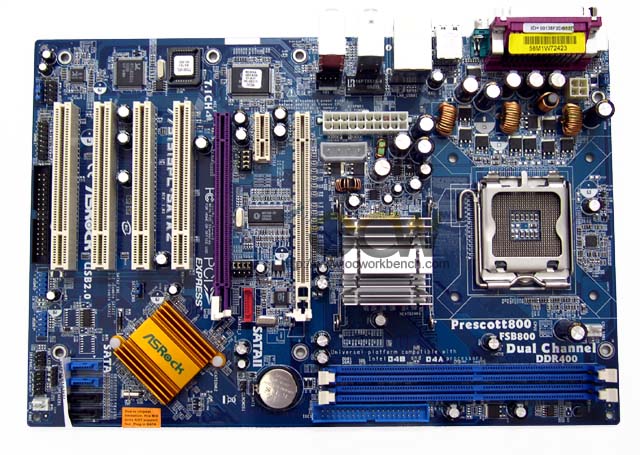

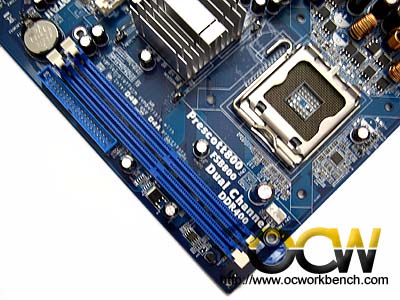

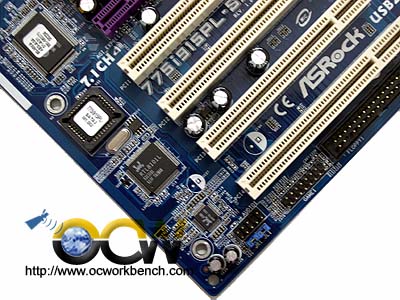

The board comes with 4 PCI, 1 PCIe x 4, PCIe x16, 1 PCIe x1. Towards the centre, we see the power connector and the North Bridge i915PL with a passive heatsink. Right behind the slot is the Realtek RTL8201 LAN PHY and audio codec Realtek ALC850. Furtherdown, we see 2 rows of DIMM slots with a maximum capacity of 2GB. To the left is the SATA II connector in red. Next to it is a South Bridge ICH6 supporting the 4 SATA I ports and single IDE channel.

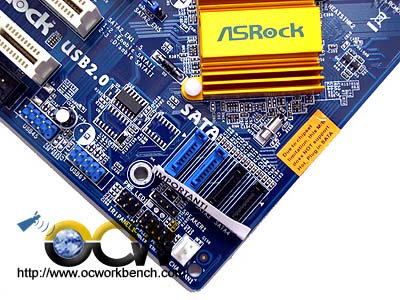

There are jumpers on board which needs to be selected to enable the Jmicron SATAII. When JMicron SATAII connector is enabled, the purple 4x slot become 1x.
