ASrock 939S56-M SiS 756 Intro 1/5
Bluetooth 6 Jul 2005

Pricing of
7800GTX

>>>

Package

** You can now win this board by checking out http://www.ocworkbench.com/asrock

If you still remember last year, we brought the first review of the K8S8X and later K8upgrade-760GX. Both boards were very stable and fast. It was actually one of the better selling entry level boards based on the SiS 755 and SiS 760GX chipsets.

While most of the existing users have gradually migrated to other chipsets due to the lack of choices in chipsets, our readers will most likely be delighted by this model as they have waited for ASrock to come out with a new model that can do moderate overclocking, suitable for HTPC and based on the 756 chipset.

ASrock 939S56-M is a microATX mainboard suitable for HTPC. It is based on the SiS 756 / 965L chipsets. It supports the Socket 939 AMD Athlon 64x2, 64, FX, Sempron processors with a FSB of 1GHz of HTT. It supports cool n quiet, 4 GB of Dual channel DDR 400. It has 1 PCi-E x16 slot and 1 PCI-Ex1 slot. In terms of expansion, this board offers 2 IDE channels for connecting 4 IDE HDDs and 2 SATA ports for SerialATA 1.5Gb/s, RAID 0,1,JBOD, SATA HDD Hotplug. 7.1 ch audio is supported using ALC850 codec. It has 4 ready to be used USB 2.0 ports with 4 more thru expansion cables. There is no GbE but it is equipped with 10/100 Ethernet LAN.

Finally, this board offers voltage selections to the VDIMM, VCore. It also has settings for ASync PCI-E, PCI option. This allows you to increase the HTT without affecting the PCI-E and PCI frequency.

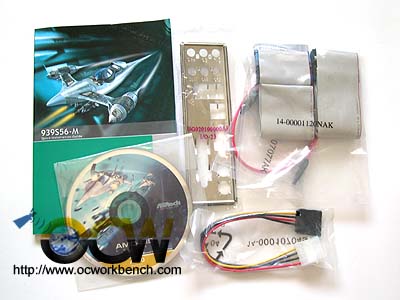

The package comes with cables, CDROM and manual.

Specifications

CPU	- Socket 939 for AMD Athlon 64X2, Athlon 64FX, Athlon 64 and Sempron processor - Supports HyperTransport Technology - Supports AMD Cool‘n’Quiet Technology
Chipset	- Northbridge: SiS 756 - Southbridge: SiS 965L
Hybrid Booster	- CPU Frequency Stepless control - CPU Vcore Adjustment - AGP/PCI frequency control - ASRock U-COP - Boot Failure Guard (B.F.G)
Memory	- DIMM slots: 4 - Max. capacity: 4GB
Slots	- 1 x PCI Express x16 slots - 1 x PCI Express x1 slots - 2 x PCI slots
VGA	- n/a
Audio	- Realtek ALC850 8channel AC'97 audio codec
LAN	- Realtek RTL8201CL 10/100 Ethernet LAN PHY - 802.3u, WOL supported
Connector	- 2 x SeialATA 1.5Gb/s connectors supports RAID,0,1,JBOD, SATA_HDD Hotplug - 2 x ATA 133/100/66 IDE connectors ( supports 4 x IDE devices) - 1 x Floppy connector - CPU/Chassis FAN connectors - 20 pin ATX power connector - 4 pin ATX 12V power connector - Power/IDE LED connector - CD audio in header - Front panel audio connector - 2 x USB 2.0 port pin header (to support extra 4 USB 2.0 ports) - 1 x Game/MIDI port pin header
Rear Panel I/O	ASRock 8CH I/O - 4 x USB2.0 ports - 1 x RJ45 LAN port - 1 x Serial port (COM1) - 1 x PS2 Keyboard connector - 1 x PS2 Mouse connectors - 1 x Parallel port (LPT1) - 2 x Audio ports ( Line In/Out, Mic In)
BIOS Feature	- 2Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP
Support CD	- Drivers, Utilities, AntiVirus Software - SATA driver and utility
Accessories	- Quick Installation Guide, Support CD, I/O shield - Floppy/ATA 133 cables - 1 x SerialATA data cable - 1 x SerialATA 1-to-1 power cable
Form Factor	MicroATX, 244mm x 224mm
Certifications	FCC, CE, MS WHQL
