ASrock 939S56-M SiS 756 Intro 2/5
Bluetooth
6 Jul 2005

 Pricing of
7800GTX

>>>

Gallery

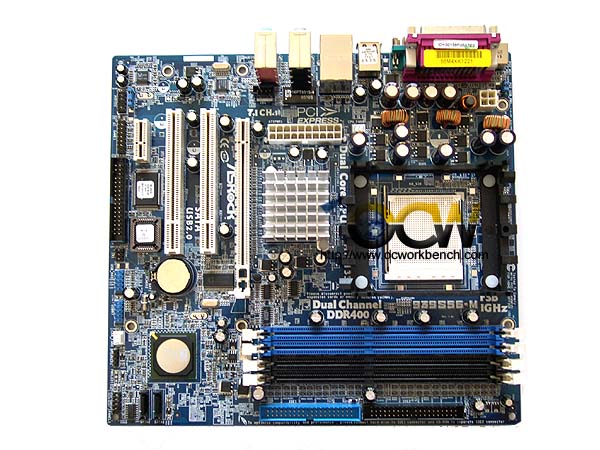

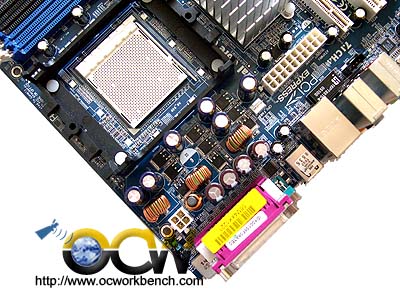

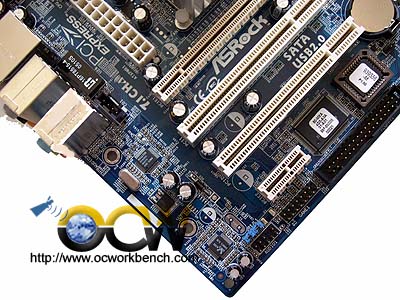

The board comes with 2 PCI, 1 PCI-Ex16 slot and 1 PCI-Ex1 slot that allows for future expansion card. Right behind the PCI slots are the LAN controller RTL8201 and ALC850 codec. Further to the right are the 3 phase power and power connectors.

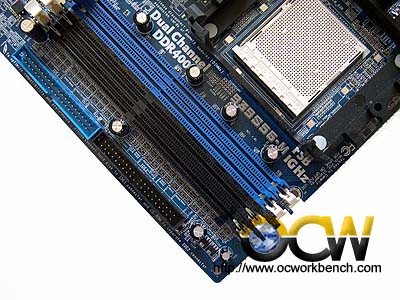

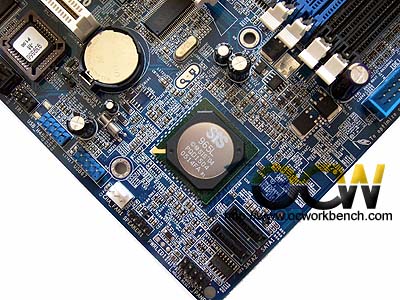

At the bottom of the board, we see 4 DIMM slots supporting up to 4GB of DC-DDR400. There are 2 IDE ports supporting up to 4 IDE devices and 2 SATA ports are also supported by the SIS 965L south bridge. The 2 SATA ports can be configured to work in a RAID 0,1,0+1 array.

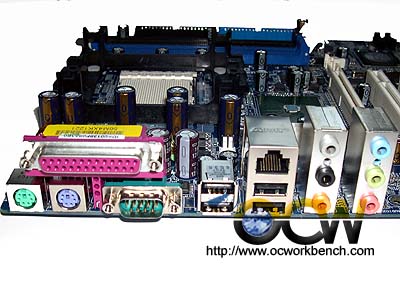

The back panel consists of PS/2 Keyboard and Mouse, 1 Com ports + 1 Parallel port, 4 USB ports, 1 x LAN port and 8 ch audio ports.
