Gallery

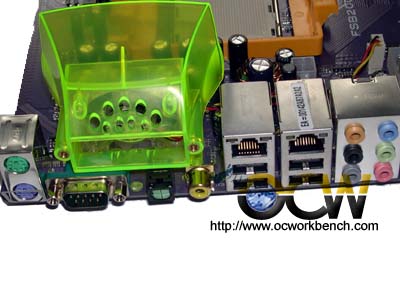

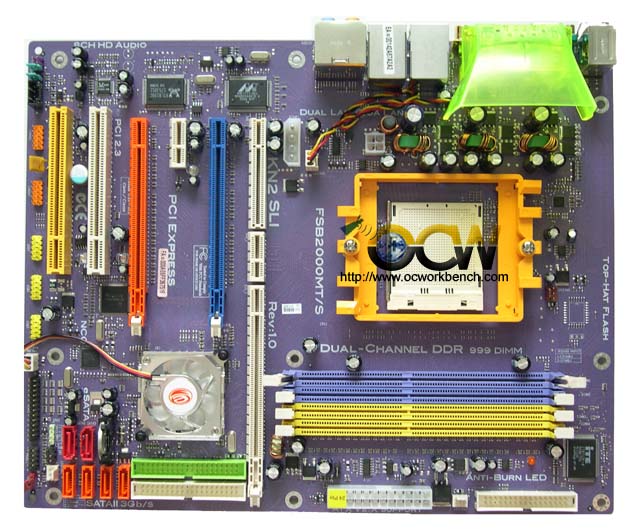

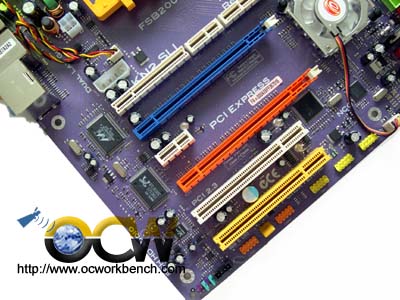

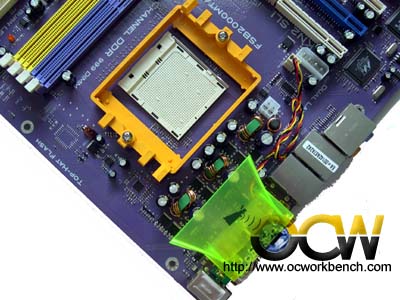

The board comes with 2 PCI, 2 PCIe x 16, 1 PCIe x1 and 1 S.D.G.E Slot. Towards the centre, we see the power AUX power 4 pin connector. The MOSFETs on the top right hand corner of the board is cooled by a fan duct (green). Behind the PCI slots is the Realtek ALC850 audio codec and, a Realtek PCI Fast Ethernet and a Marvell GbE PHY. Next to the orangle slot is the Texas Instrument 1394A controller.

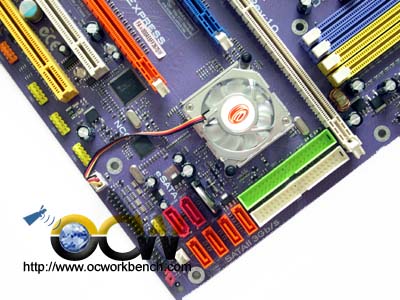

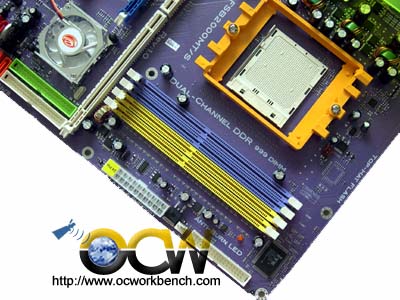

Furtherdown, we see 4 SATAII + 2 IDE channel supported by Ck804 chipset. Two other SATA II ports are supported by SiliconImage Sil 3132 chipset.  All ports are SATA II + NCQ. The DDR ram slots support DDR400/333/266/200. Up to 4GB of DDR400 can be supported.

The package comes bundled with the DUO-N card which comes with a NVIDIA C51D chipset+BIOS. This card must be inserted.
