Foxconn 955X7AA i955X Mainboard Intro 2/5
Bluetooth 11 July 2005

Gallery

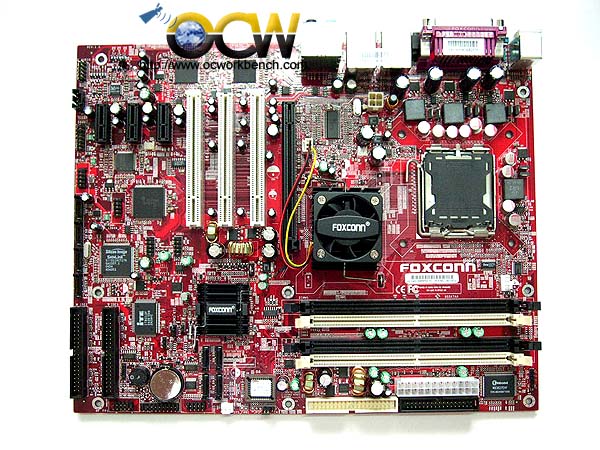

The board comes with 3 PCIex1, 3 PCI slots, 1 PCIex16. Right behind the PCI slots are two Broadcom GbE PCIe based controllers. The Audio codec is a Realtek ALC880. It is located just behind the leftmost PCIex1 slot. To the right is the clkgen, 4 pin power aux, the mosfets and the LGA775 socket. The north bridge 955X is right at the centre of the board.

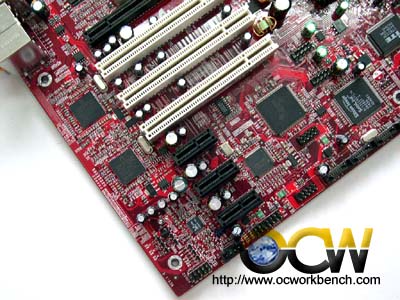

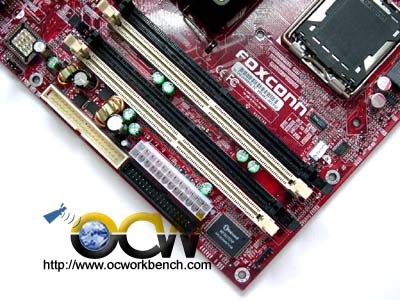

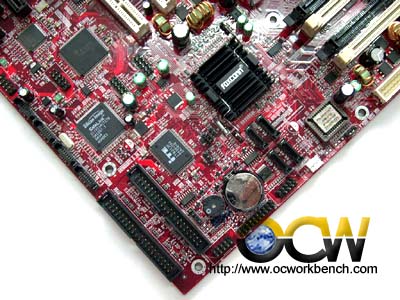

On the left rear of the board, we see TI controllers for 1394, SiliconImage 3114 SATA RAID controller which controls 4 SATA ports situtated at the side of the board. At the bottom of the board we see the IDE slots, South Bridge ICH7. The ICH7 takes care of 4 SATA ports and 1 IDE channel. Further to the right are 4 DIMM slots supporting up to 4GB DIMM.

The back panel consists of PS/2 Keyboard and Mouse, S/PDIF Coaxial, COM1, Parallel port, 2 GbE, 4 USB ports and the audio ports.
