ULi M1697 Reference Mainboard Intro 2/5
Bluetooth 28 Nov 2005

Gallery

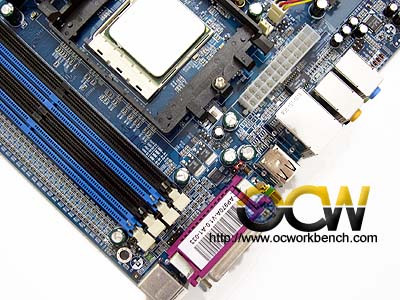

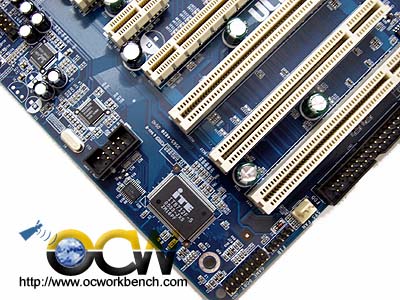

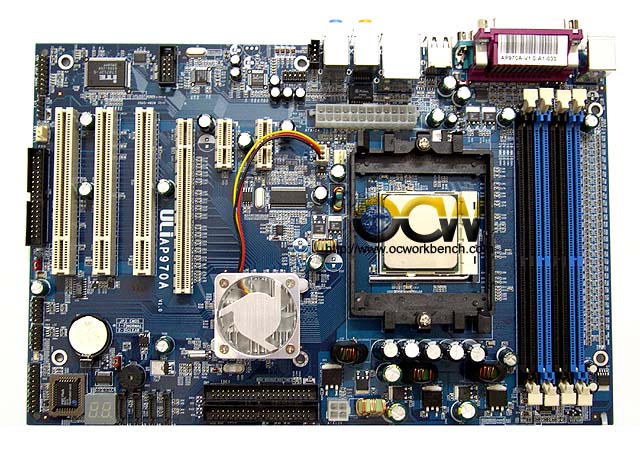

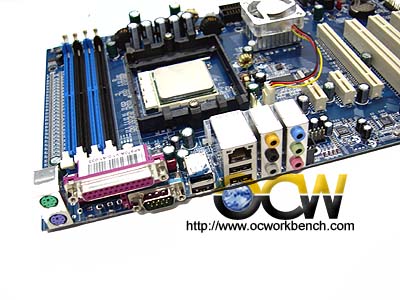

The reference board is small in size. In this small ATX board, we can find 3 PCI, 1 PCIe x16, 2 PCIe x1 slots. Behind the PCI slot is the I/O controller chip, Fast Ethernet PHY, Realtek HD audio codec. The audio ports, LAN, USB ports are located right behind the power connector.

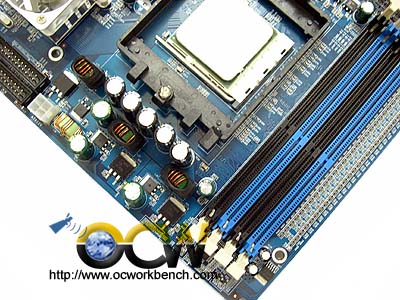

To the right, we see DDR400 DIMM slots that can accomodate up to 4GB of memory. The Socket 939 is next to it and the chipset is right in the centre.

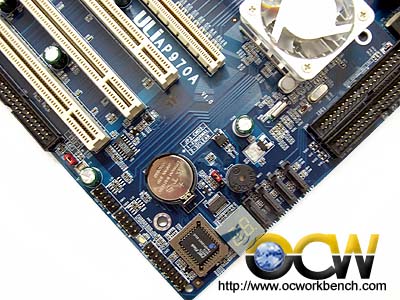

At the bottom left, the BIOS chipset, a DEBUG LED can be seen. There are 4 SATA II (NCQ) ports with 2 channels of IDE for hooking up to 4 IDE HDDs. The SATA ports support RAID 0,1,0+1,5,JBOD.
