abit FATAL1TY AN9 32x Intro 2/5
Bluetooth 18 July 2006

Gallery

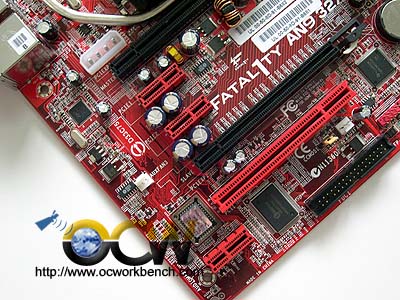

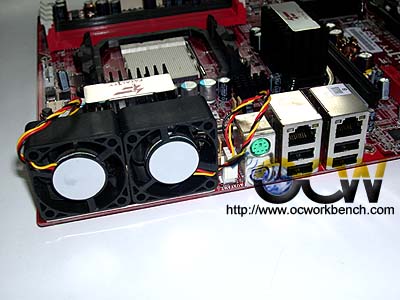

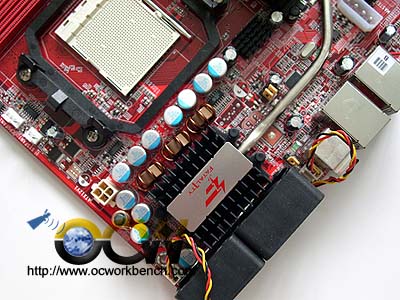

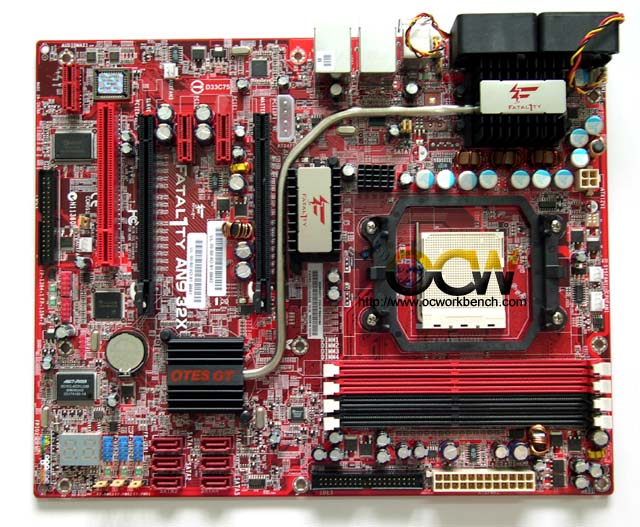

The red coloured board comes with 1 PCI, 2x PCIe x1, 2 x PCIex16. On the extreme left is the riser card port where you fit in the audiomax card provided. Towards the centre, you will see the NV 590 SLI chipset covered by the heatpipe. Towards the right rear are two fans that helps to cool down the mosfets.

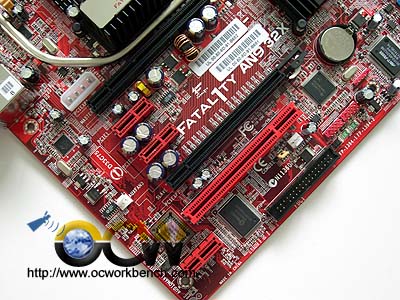

Behind the slots are I/O controller chip, the Dual GbE Supporting chipset from Marvel. The audio codec can be found on the riser card.

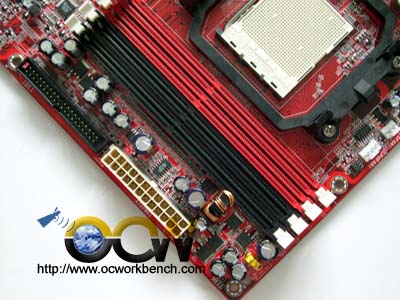

Further down to the left, you will see the 6 SATA II ports, 1 IDE channel supported by the south bridge. Nex tto the CMOS battery is the 1394a chipset from Teax instrument. on the right are 4 DIMM of DDR2-400/533/667/800 supported slots supporting up to a total of 8GB of memory in total.
