ASrock 775XFire-eSATA2 (Intel 945PL) Intro 2/5
Bluetooth 3 Feb 2006

Gallery

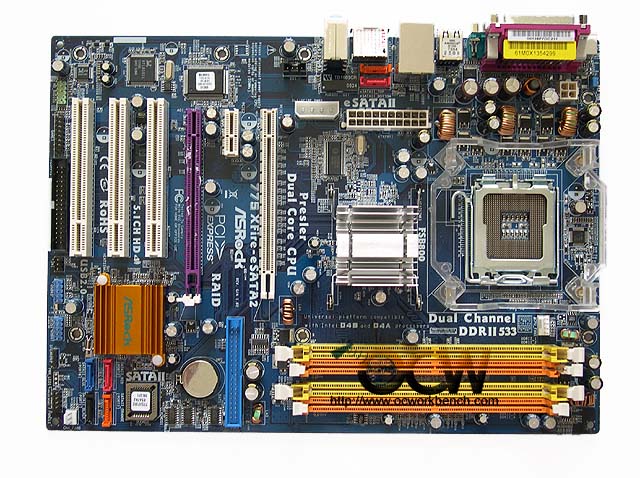

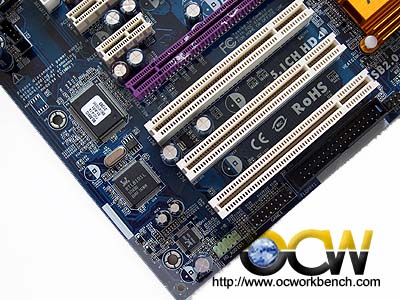

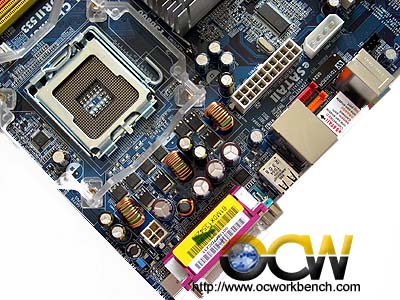

The board comes with 3 PCI, 1x PCIe x4, 1 x PCIex1 and 1 x PCIex16 slot. The power on board is based on a 3 phase design. If you notice, Behind the slots are I/O controller chip, audio codec and at the centre you will see the Realtek Fast Ethernet PHY. On the left is the ALC 660 audio codec.

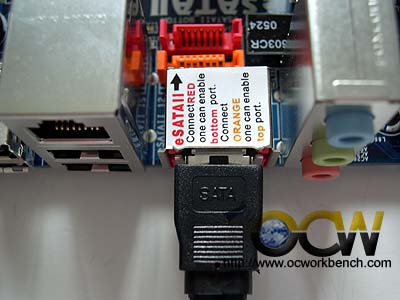

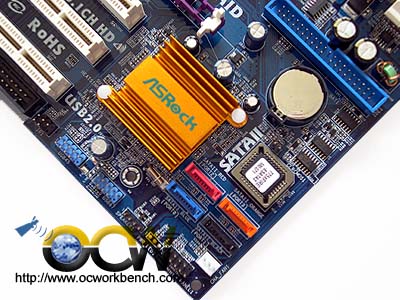

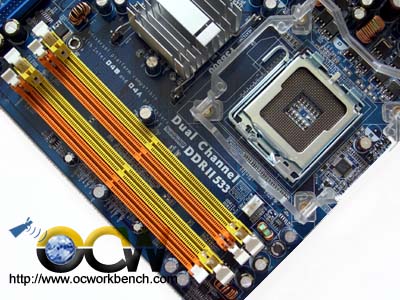

Further down to the left, you will see the 4 SATA II ports, 2 of which will be plugged to the eSATAII ports at the rear through the SATA cable provided. There is also 1 IDE channel. There are 4 DIMM slots supporting up to 4GB of DDR2-533 modules.

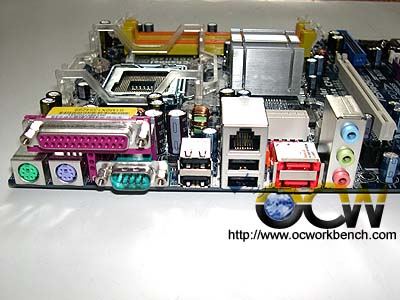

The back panel consists of PS/2 Keyboard and Mouse,1 COM port, 4 USB, 1 FastEthernet port and 6ch audio ports and 2 eSATA ports.
