ASRock ALiveNF4G-DVI AM2 board (NF6100) Review Intro 1/5
Bluetooth 8 Aug 2006

 Pricing from
various
vendors
>>>

ASRock ALiveNF4G-DVI

Lately, ASRock seems to be coming out with lots of variations of the AM2 mainboards. In the past weeks, we have reviewed a number of boards based on VIA, ULi chipsets for AM2. Today, we take a look at ALiveNF4G-DVI, a AM2 board based on the old chipset NF6100 (Northbridge) with 410 (Southbridge).

The ALiveNF4G-DVI supports dual channel DDRII-800/667/533 with 4 DIMM slots with a max capacity of 8GB. It comes with 2 PCI, 1 PCIe x16 and 1 PCIex1.  The board comes with integrated NV44 graphics DX9.0 VGA that supports Pixel Shader 3.0. It can used up to a max. shared memory 128MB. The board is NVIDIA® PureVideo™ Ready for accelerating video clips. Most importantly, the board has a dual VGA output port. - it supports DVI-D and D-Sub ports by independent display controllers.

The board also supports 2 SATA II 3.0Gb/s supporting RAID 0,1, JBOD, NCQ and hot plug functions. There is Fast ethernet, a 7.1 ch VISTA premium level HD Audio using the ALC888 audio codec.The board is Windows® Vista™ Permium Logo Hardware Ready and AMD LIVE! Ready.



Specs

CPU - Socket AM2 for AMD Athlon™ 64FX / 64X2 / 64 and Sempron Processors
- AMD LIVE!™ Ready
- Supports AMD's Cool 'n' Quiet Technology
- FSB 1000 MHz (2.0 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology
Chipset - Northbridge: NVIDIA® GeForce 6100
- Southbridge: NVIDIA® nForce 410 MCP
Hybrid Booster - CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Memory - Dual Channel DDRII memory technology
- 4 x DDRII DIMM slots
- Supports DDRII800/667/533
- Max. capacity: 8GB
Expansion Slot - 2 x PCI slots
- 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
Graphics - Integrated NV44 graphics DX9.0 VGA
- Pixel Shader 3.0
- Max. shared memory 128MB
- Dual VGA Output: Support DVI-D and D-Sub ports by independent display controllers
- NVIDIA® PureVideo™ Ready
Audio - Realtek ALC888 7.1 channel CODEC with High Definition Audio
LAN - Realtek PHY RTL8201CL
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
Connector - 2 x Serial ATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, JBOD) and "Hot Plug" functions
- 2 x ATA133 IDE connectors (support 4 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x Game header
- 1 x COM Port header
- 1 x HDMI_SPDIF header
- CPU/Chassis FAN connector
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
Rear Panel I/O ASRock DVI I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x Parallel Port (ECP/EPP Support)
- 4 x Ready-to-Use USB 2.0 Ports (including 2 ports on bundled USB+COM port bracket)
- 1 x RJ-45 Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
BIOS Feature - 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)
Hardware Monitor - CPU Internal Temperature Sensing
- CPU Ambient Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

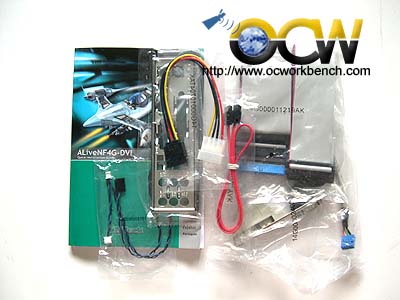

Accessories - Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 cables
- 1 x SATA data cable (optional)
- 1 x SATA 1 to 1 power cable (optional)
- 1 x USB+COM port bracket (optional)
- 1 x HDMI_SPDIF cable (optional)
Form Factor - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
OS - Microsoft® Windows® 2000 / XP / XP Media Center / XP 64-bit / Vista™ compliant
Certifications - FCC, CE, WHQL
