ASRock ALiveNF4G-DVI AM2 board (NF6100) Review Intro 2/5
Bluetooth 8 Aug 2006

Pricing from
various
vendors
>>>

Gallery

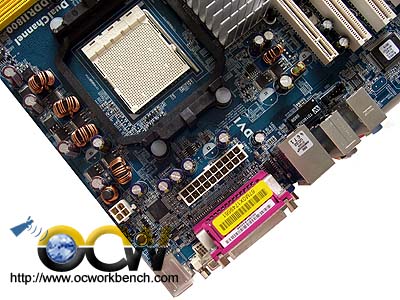

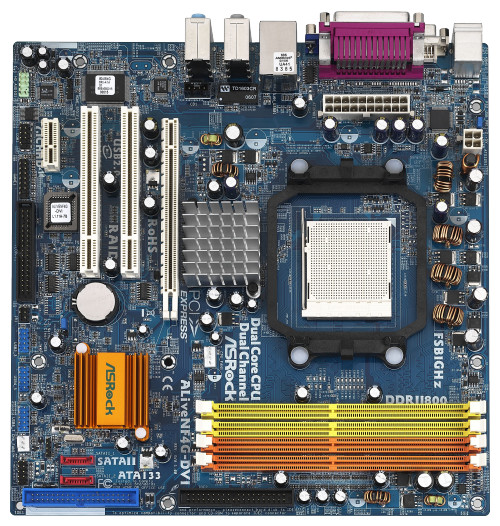

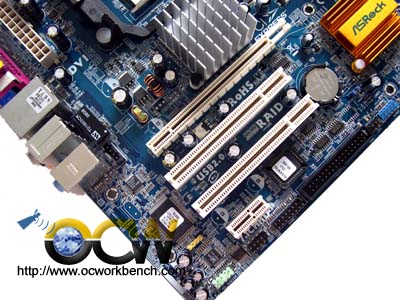

The board comes with 2 PCI, 1 PCIex1 and 1 PCIex16 slot for external VGA card. On the top left you would see audio codec ALC888, Realtek Fast Ethernet RTL8201 chip.

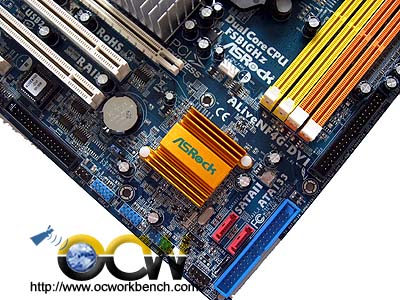

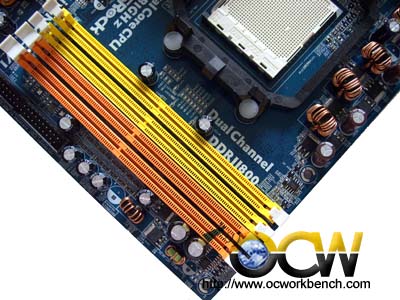

At the bottom left, you will see the 2 SATA II ports and 2 IDE channel supported by the MCP410 chipset. On its left are the USB connectors. ON the right are 4 DIMM slots supporting up to a total of 8GB of memory using DDR2-533/667/800.

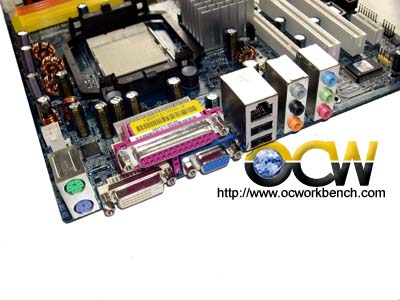

The back panel consists of PS/2 Keyboard and Mouse, VGA, DVI, 1 LPT, 1 VGA, 2 USB ports, Fast Ethernet and 7.1 ch audio ports.
