ASUS P5W DH Deluxe (i975x) Review Intro 2/5
Bluetooth 12 Jul 2006

Pricing from
various
vendors
>>>

Gallery

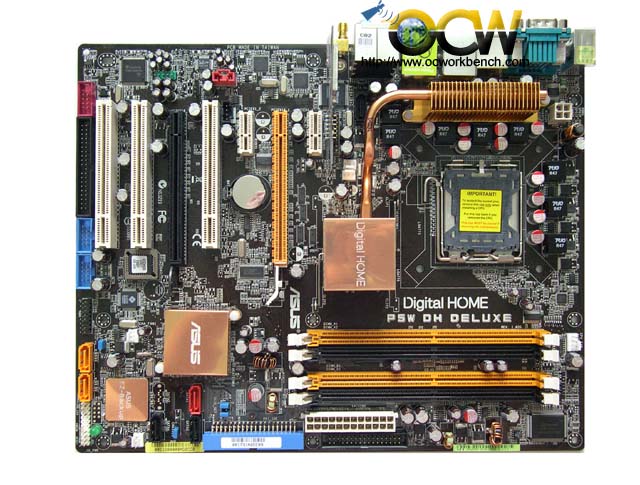

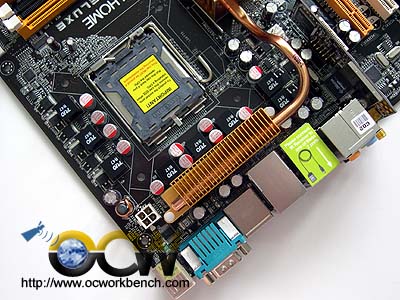

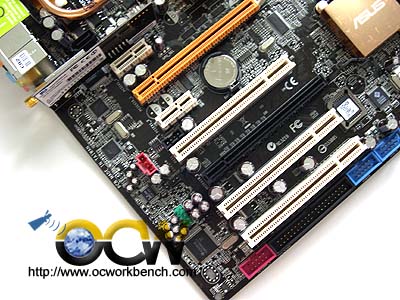

The board comes with 3 PCI, 2 PCIe x 16 slots (can be configured as 1x16 or 2x8) and 2 PCIex1 slots. On the top left you would see the 1394 controller chipset, Realtek ALC882 7.1ch HD audio codec, two Marvell GbE PHY and one Jmicron JBM363 chipset. At the centre, you will see the WiFi card fasten to the mainboard with antenna port protruding from behind. Towards the CPU, we can see the heatpipe design with a 8 phase power design for maximum stability.

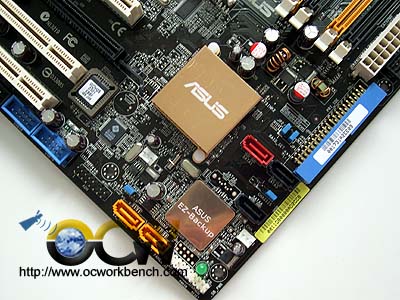

At the bottom left corner, we can see 5 SATA ports, 3 SATA II + 1 IDE supported by ICH7R in Riad 0,1,5. 2 others are supported by SiliconImage 4723 Hardware Raid controller for raid 0 / 1 (ASUS EZ-Backup).

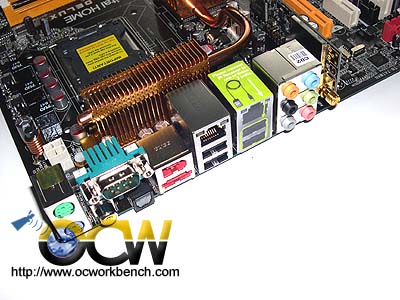

The back panel consists of PS/2 Keyboard and Mouse, 1 COM port, 4 USB ports, 1394, eSATA, S/PDIF coaxial, 2 GBE and 7.1 ch audio ports.
