ATi RD600 chipset Intro 2/3
Bluetooth 27 Jul 2006

 Pricing of
775Dual-VSTA

>>>



Introduction

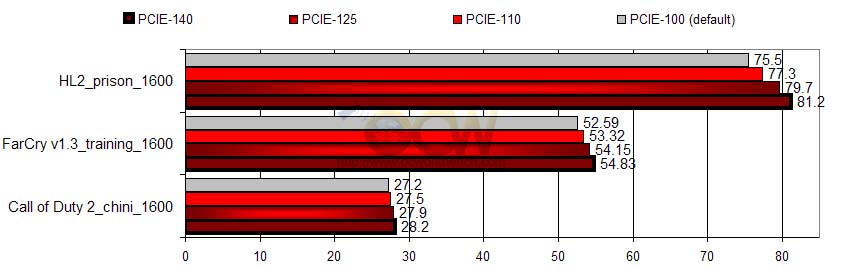

The chart below shows the results of the few games when PCIe bus is overclocked to 140MHz using X1600 Pro CrossFire on Core 2 Duo 1.866GHz (7 x 266).

  PCIE-140 PCIE-125 PCIE-110 PCIE-100 (default)
Call of Duty 2_chini_1600 28.2 27.9 27.5 27.2
FarCry v1.3_training_1600 54.83 54.15 53.32 52.59
HL2_prison_1600 81.2 79.7 77.3 75.5
Call of Duty 2_chini_1024 59.5 58.8 57.9 57.1
FarCry v1.3_training_1024 114.7 113.45 111.5 110.36
HL2_prison_1024 173 169.9 164.5 160.7

Intel Core 2 Duo processors has locked its multiplier. In this case, the only way to o/c is to push the CPUCLK. In the sample, it is shown that it can reach a FSB1500 (375MHz) with RAM speed running at DDR750 running in SYNC mode.

It seems that the o/c is pretty good. Newer revisions should be able to hit higher FSB.
