EPoX MF570 SLI (NV 570 SLI) AM2 Mainboard Reivew Intro 2/6
Bluetooth 22 May 2006

Pricing from
various
vendors
>>>

Gallery

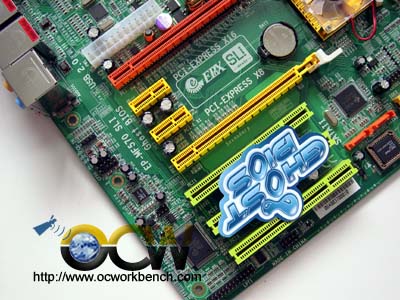

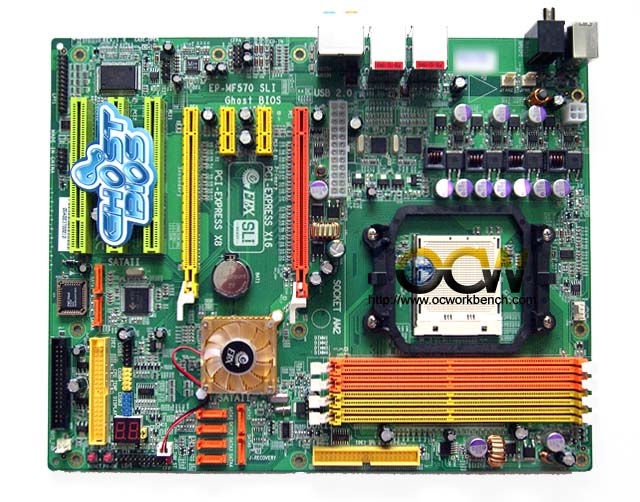

The board comes with 3 PCI, 2 PCIex8 or 1 x PCIe x16, 2 PCIex1 slots. On the top left you would see the ALC 883 audio codec. There are also 2 Marvell GbE PHY (2x) near the mosfets.

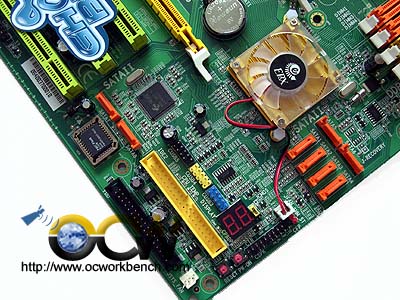

At the bottom left, you will see the 6 SATA II ports, 1 IDE channel supported by the 570 SLI chipset. Another 2 SATAII(NCQ) ports are supported by Jmicron JMB363 chipset. On the right are 4 channels of DDR2 slots supporting DDR2-533/667/800 modules. A total of 8GB can be installed.

Traditional EPoX DEBUG LED and Power on/off and reset switches are on board which makes it easy to reset systems during overclocking tests.

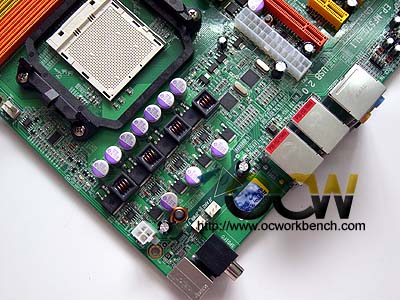

The back panel consists of PS/2 Keyboard and Mouse, 4 USB ports, S/PDIF, 2 GbE and 7.1 ch audio ports. The empty space at the back panel will be fitted with a fan in the final shipping model.
